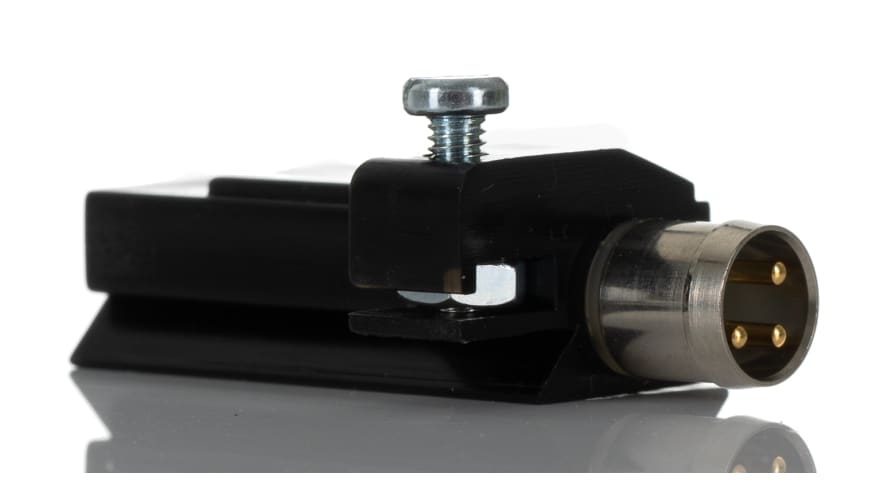

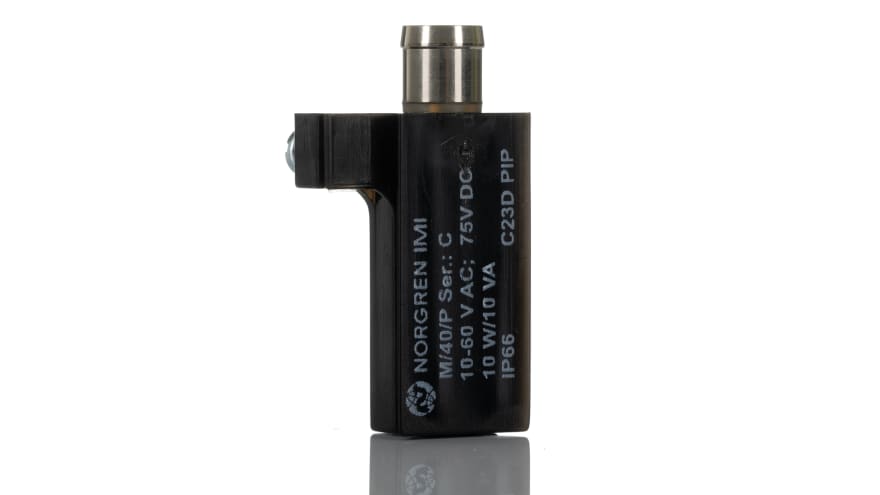

IMI Norgren Reed Pneumatic Cylinder & Actuator Switch, IP66, NO Operation, M/40, with LED indicator

Name: IMI Norgren Reed Pneumatic Cylinder &amp; Actuator Switch, IP66, NO Operation, M/40, with LED indicator
Brand: NORGREN
SKU: M/40/P
Availability: InStock

รหัสสินค้า: M/40/P

Original price was: ฿11,074.04.Current price is: ฿8,859.23. รวมภาษีมูลค่าเพิ่มแล้ว

จัดส่งถึงปลายทางภายใน 4-7 วันทำการ

ขอใบเสนอราคาและส่วนลด

รายละเอียดสินค้า / Product Details

**IMI Norgren Pneumatic Cylinder and Actuator Switch, Plug-In Connector, 10 to 60V AC Switching Voltage – M/40 Series – M/40/P**
Keep an eye on your air-powered appliance’s position with this pneumatic cylinder and actuator switch from IMI Norgren. A reed switch automatically closes its contacts when it senses a piston rod’s magnetic field, to reliably signalling a cylinder’s status. You won’t be left waiting for info, as the device has a 1.8ms response time, so reacts to movement in a snap. Installation is done and dusted in a jiffy thanks to its plug-in connector. As the switch has IP66-rated protection, it holds its own against dust and strong water jets in harsh industrial applications.

**Features & Benefits**
• Handles cable swivel of up to 32°, providing secure hold against movement
• Narrow body dimensions of 30 (L) x 8 (W) x 16mm (H), slipping into awkward spaces for flexibility
• LED indicator shows contact status for simple spot-checking

**Applications**
• Metalworking
• Printing industry
• Textiles manufacturing

**Can I use the actuator switch in extreme temperatures?**
Yes, this product is safe to use in challenging settings, thanks to an operating temperature range between -20°C and +80°C.

Compare

Add to wishlist

รหัสสินค้า: M/40/P หมวดหมู่: Hydraulics and Pneumatics / ไฮดรอลิกส์และระบบลม

คำอธิบาย
Documents

คำอธิบาย

คุณสมบัติ / Specifications
Type: Reed
Manufacturer Series: M/40
LED Indicator: Yes
Operation: NO
IP Rating: IP66
Minimum Operating Temperature: -20°C
Maximum Operating Temperature: +80°C
