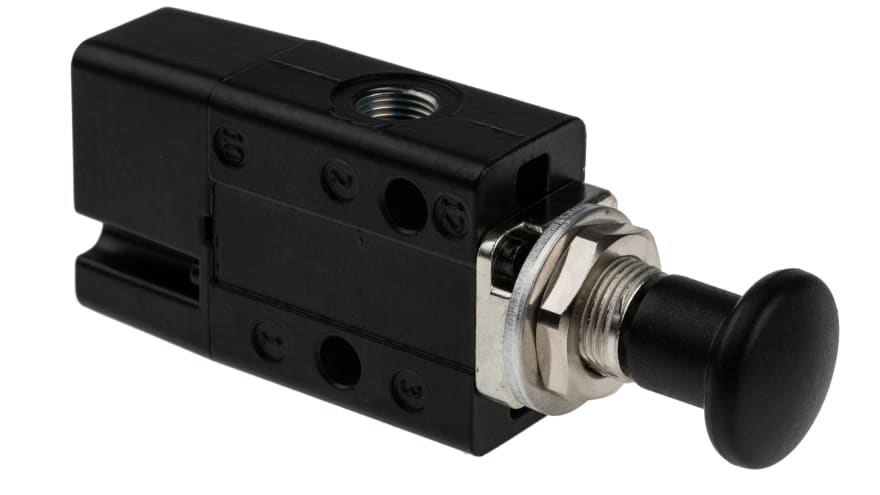

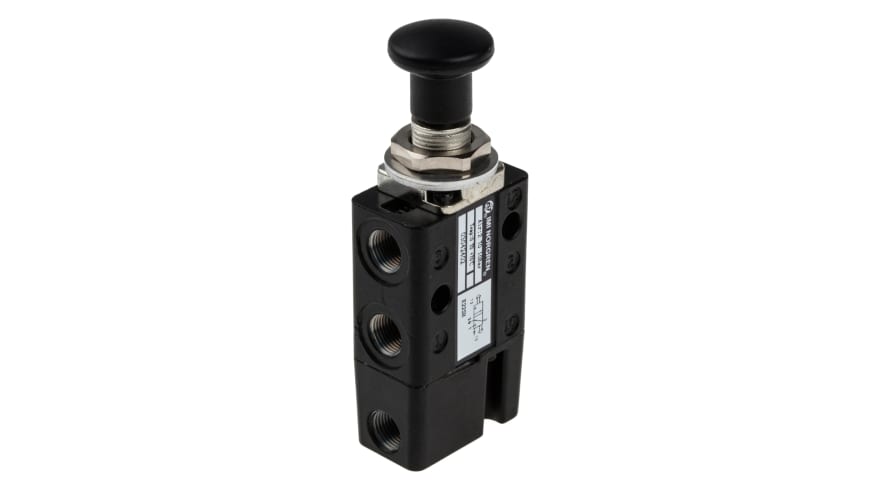

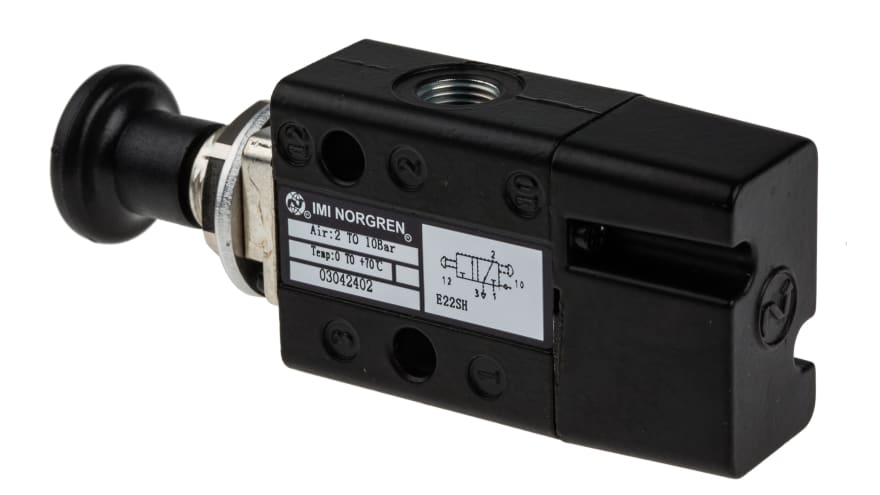

IMI Norgren Knob 3/2 Mechanical Valve 304 Series, G 1/8, 1/8

Name: IMI Norgren Knob 3/2 Mechanical Valve 304 Series, G 1/8, 1/8
Brand: NORGREN
SKU: 3042402
Availability: OutOfStock

รหัสสินค้า: 3042402

Original price was: ฿6,024.06.Current price is: ฿4,819.25. รวมภาษีมูลค่าเพิ่มแล้ว

โปรดติดต่อเราเพื่อสั่งซื้อ

สินค้าหมดแล้ว

รายละเอียดสินค้า / Product Details

**IMI Norgren Mechanical Spool Valve, 3/2 Function, G1/8 Thread – 304 Series – 03042402**
Control the flow of compressed air in your pneumatic system using this mechanical spool valve from IMI Norgren. It works by blocking or opening ports to determine the direction of airflow. This valve has a 3/2 function, which means it can move in two different positions to control three ports. Its broad operating pressure range between -0.9 and 10 bar means it’s suitable for use in low-pressure applications. The durable zinc body is resistant to impact and corrosion, so this spool valve is suitable for use in harsh environments.

**Features & Benefits**
• Comes with through-holes for quick and easy mounting
• Wide operating temperature range between 0°C and +70°C for use in demanding environments
• Lightweight at 0.21kg so won’t place strain on equipment
• NBR (nitrile-butadiene rubber) seal is resistant to oil and solvents for reliable use in factory settings

**Applications**
• Automotive industry
• Conveyor equipment
• Aviation industry
• Automated industrial systems

**How do I control the movement of this spool valve?**
This valve comes with a rotary knob at the top that lets you easily adjust its position to control airflow.

Compare

Add to wishlist

รหัสสินค้า: 3042402 หมวดหมู่: Hydraulics and Pneumatics / ไฮดรอลิกส์และระบบลม

คำอธิบาย
Documents

คำอธิบาย

คุณสมบัติ / Specifications
Control Mechanism: Knob
Connection Port Thread: G 1/8
Function: 3/2
Thread Size: 1/8
Thread Standard: G
Manufacturer Series: 304
Maximum Operating Pressure: 10 bar
Body Material: Zinc
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: +70°C
