คุณสมบัติ / Specifications
Connection Port Thread: G 1/4
Actuation Type: Pilot/Pilot
Manufacturer Series: V61
Mounting Style: Inline
Number of Ports: 1
Body Material: Aluminium
Minimum Operating Pressure: 0.9bar
Maximum Operating Pressure: 10 bar
Minimum Operating Temperature: -10°C
Maximum Operating Temperature: +50°C
Thread Standard: G
-20%Sold out
สินค้าในกลุ่มนี้ทั้งหมด
IMI Norgren Double Acting Cylinder - 63mm Bore, 400mm Stroke, PRA Series, Double Acting – Model: PRA/802063/M/400
Original price was: ฿12,193.66.฿9,754.93Current price is: ฿9,754.93. รวมภาษีมูลค่าเพิ่มแล้ว
IMI Norgren Proportional Control Valve - Pilot/Spring VP50S Series
Original price was: ฿57,867.00.฿46,293.00Current price is: ฿46,293.00. รวมภาษีมูลค่าเพิ่มแล้ว
IMI Norgren Solenoid Pilot Valve – Pilot/Pilot G 1/4 V61 Series
รหัสสินค้า: V61B4DDA-XA020Original price was: ฿5,171.55.฿4,137.24Current price is: ฿4,137.24. รวมภาษีมูลค่าเพิ่มแล้ว
โปรดติดต่อเราเพื่อสั่งซื้อ
สินค้าหมดแล้ว
รายละเอียดสินค้า / Product Details

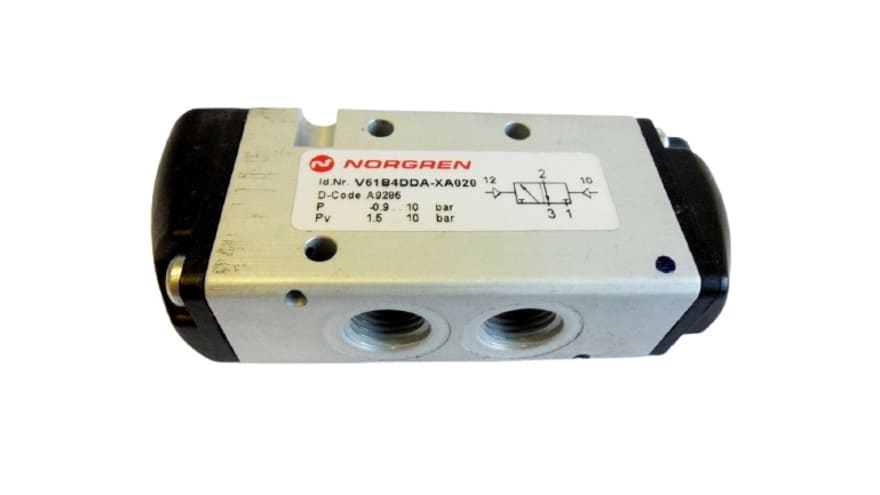

**IMI Norgren Solenoid Pilot Valve, Compressed Air Medium, Pneumatically Controlled Type – V61 Series – V61B4DDA-XA020**
Controlling airflow is a breeze with this IMI Norgren solenoid pilot valve. When supplied with air at 1.5 to 10 bar, the 3/2-way unit changes the fluid direction in your process by opening or closing its built-in poppet mechanism. Weighing in at 210g, it’s a lightweight option that doesn’t put pressure on your setup. It’s also a hardy device that withstands temperatures from -10°C to +50°C, so you can use it in harsh work areas. The NBR seals resist chemical damage to ensure a long and leak-free service life, even in heavy-duty environments.
**Features & Benefits**
• Broad operating pressure range between -0.9 and 10 bar for versatility
• Compact size of 165 (L) x 68 (W) x 42mm (D) makes it a space-saving component
• Standard G1/4 port size to allow for use with common connecting parts
• IP65 rating indicates it’s dust-tight and withstands low-pressure water jets from any direction
• Aluminium housing shrugs off rust, meaning it’s suitable for work areas with high moisture levels
**Applications**
• HVAC systems
• Manufacturing industry
• Agricultural equipment
**How reliable is this solenoid valve?**
The valve is built to deliver 12 million cycles, so you can count on it to go the distance.
