คุณสมบัติ / Specifications
Function: 3/2
Connection Port Thread: G 1/8
Actuation Type: Pilot/Pilot
Manufacturer Series: V60
Number of Ports: 3
Body Material: Aluminium
Maximum Flow Rate: 750L/min
Minimum Operating Pressure: -0.9bar
Minimum Operating Temperature: -10°C
Maximum Operating Temperature: +50°C
Thread Size: 1/8in
Configuration: 2-Position, 3 Port
Number of Positions: 2
Maximum Operating Pressure: 10 bar
Thread Standard: G
-20%
สินค้าในกลุ่มนี้ทั้งหมด
Norgren PNEUFIT 10 Series Straight Threaded Adaptor, R 1/4 Male to Push In 5 mm, Threaded-to-Tube Connection Style – Model: 101250528
Original price was: ฿439.18.฿365.98Current price is: ฿365.98. รวมภาษีมูลค่าเพิ่มแล้ว
Norgren, 100mm, 400V ac, 24600N, 200mm/s – Model: E/809100/05M/DRA/200
Original price was: ฿268,891.91.฿224,076.59Current price is: ฿224,076.59. รวมภาษีมูลค่าเพิ่มแล้ว
Norgren 3/2 Pneumatic Solenoid Valve – Pilot/Pilot G 1/8 V60 Series
รหัสสินค้า: V60A4DDA-XA020Original price was: ฿5,728.00.฿4,583.00Current price is: ฿4,583.00. รวมภาษีมูลค่าเพิ่มแล้ว
จัดส่งถึงปลายทางภายใน 4-7 วันทำการ
ขอใบเสนอราคาและส่วนลด
รายละเอียดสินค้า / Product Details

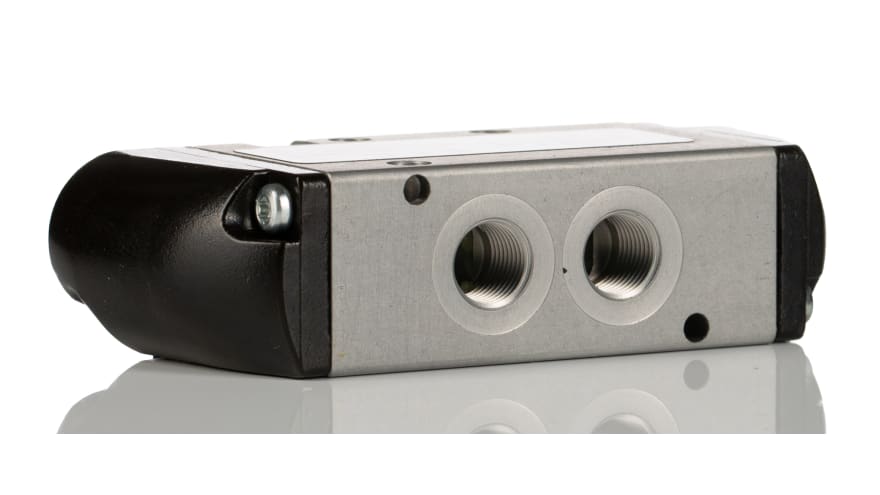

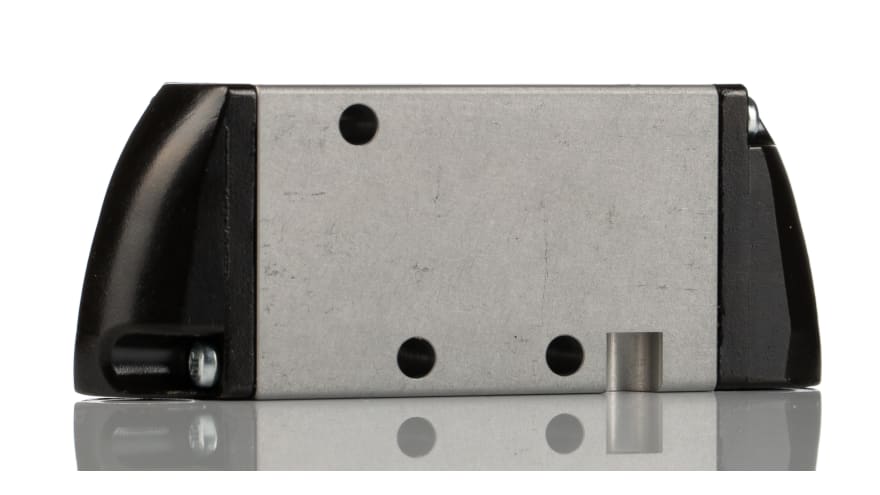

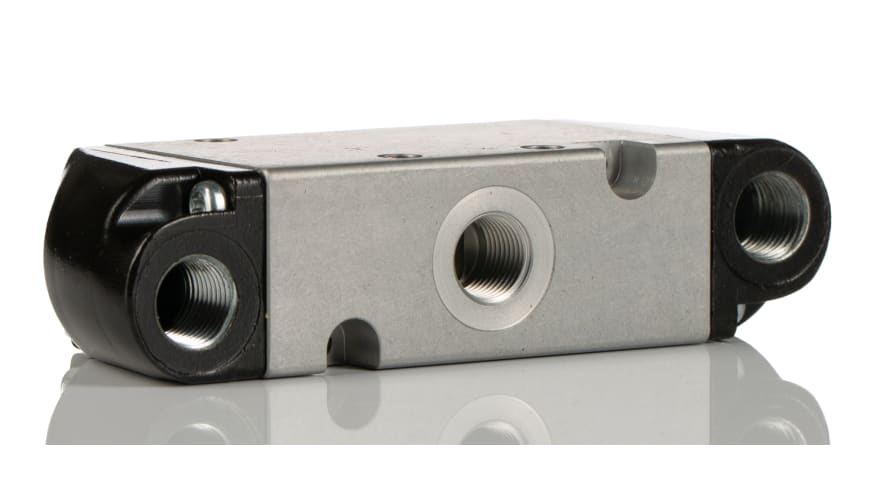

**IMI Norgren Pneumatic Solenoid Valve, 3/2 Function, Aluminium Material – V60 Series – V60A4DDA-XA020**
Use this 3/2 solenoid valve from IMI Norgren to manage the flow of fluid or gas in your system. Its housing is made of aluminium, meaning it’s durable and resistant to corrosion, so you can use it in harsh conditions that are likely to be damp. The movement of the device’s spool is driven by air pressure, which opens and closes the valve when it changes, providing swift control of the operation. This unit has an IP65 rating, meaning it’s fully sealed against dust and resistant to low-pressure water jets from all directions.
**Features & Benefits**
• Operating pressure range between -0.9 and 10 bar for versatility
• G1/8 thread is widely compatible with standard equipment and lets you install the device without specialist tools
• Flow rate of 750 litres per minute, ideal for light-duty applications
**Applications**
• Domestic water pumps
• Food processing industry
• Medical laboratories
**What temperatures can I use this solenoid valve in?**
This device has a wide operating temperature range of -10°C to +50°C, so you can rely on it to perform safely in demanding industrial conditions.
