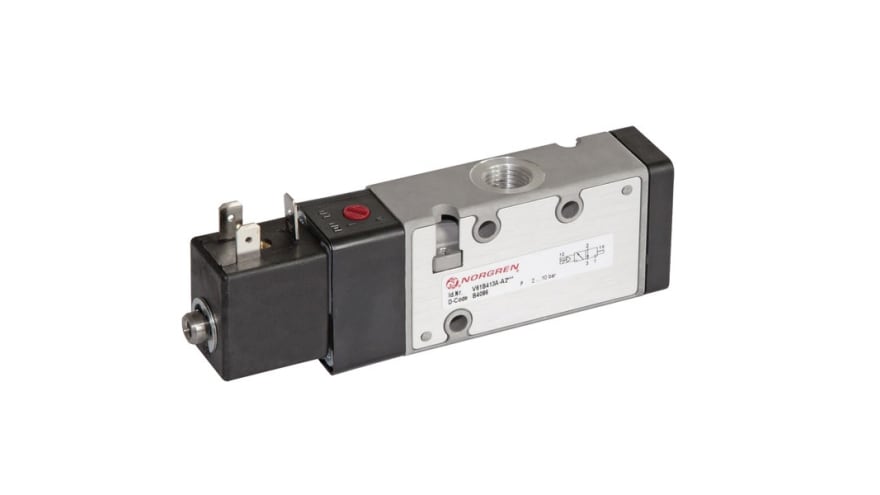

Name: IMI Norgren Pneumatic Solenoid Valve - Solenoid/Air G 1/8 V60 Series 24V
Brand: NORGREN
SKU: V60A413A-A313J
Availability: InStock

IMI Norgren Pneumatic Solenoid Valve – Solenoid/Air G 1/8 V60 Series 24V

รหัสสินค้า: V60A413A-A313J

รวมภาษีมูลค่าเพิ่มแล้ว

จัดส่งถึงปลายทางภายใน 4-7 วันทำการ

มีสินค้าอยู่ 3

ขอใบเสนอราคาและส่วนลด

รายละเอียดสินค้า / Product Details

**IMI Norgren Pneumatic Solenoid Valve, 750L/min Flow Rate, Internal Pilot Supply – V60 Series – V60A413A-A313J**
Choose this pneumatic solenoid valve from IMI Norgren to get air on the move through your industrial setup. The manifold design ensures that installation is straightforward, so you’re up and running in no time. Its three ports give you flexible connectivity options. Die-cast aluminium alloy housing shrugs off bumps and scrapes, so you can trust this unit to handle tough industrial environments. NBR seals are on hand to keep pressure in and contaminants out, while withstanding corrosion, to keep your media squeaky clean.

**Features & Benefits**
• Wide operating pressure range between 2 and 10 bar
• Flow rate of 750L/min to withstand powerful systems
• IP65 rating means it’s dust-tight and withstands low-pressure water sprays from every direction
• Performs reliably in a temperature range between -10°C and +50°C

**Applications**
• Cooling lines
• Mining and minerals processing
• Industrial automation

**What port size does this valve have?**
It has a standard G1/8 port size that’s widely compatible with pneumatic equipment.

**Is this device heavy?**
This pneumatic solenoid valve tips the scales at 220g, so it doesn’t add excess load to your setup.

คุณสมบัติ / Specifications
Connection Port Thread: G 1/8
Actuation Type: Solenoid/Air
Manufacturer Series: V60
Mounting Style: Inline
Solenoid Voltage: 24V
Body Material: Aluminium
Maximum Flow Rate: 750L/min
Solenoid Power Consumption: 2W
Minimum Operating Pressure: -0.9bar
Minimum Operating Temperature: -10°C
Maximum Operating Temperature: +50°C
Maximum Operating Pressure: 10 bar
Configuration: NC
Thread Size: G 1/8in
Thread Standard: G
