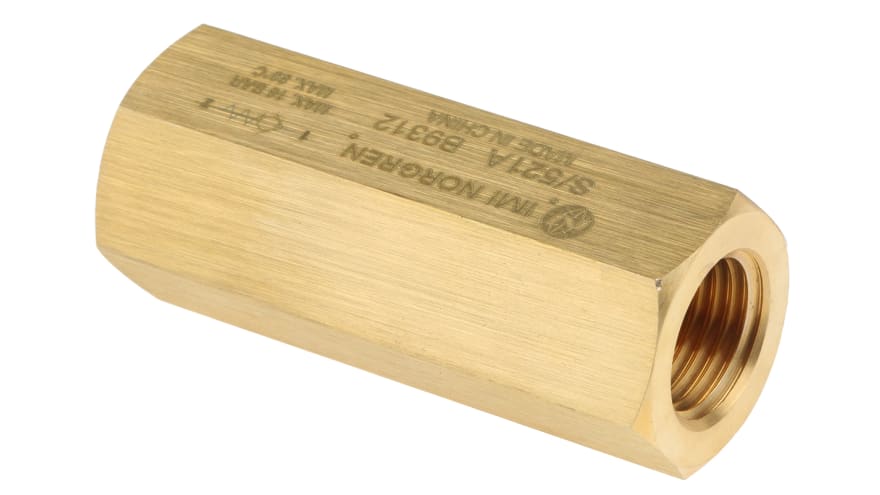

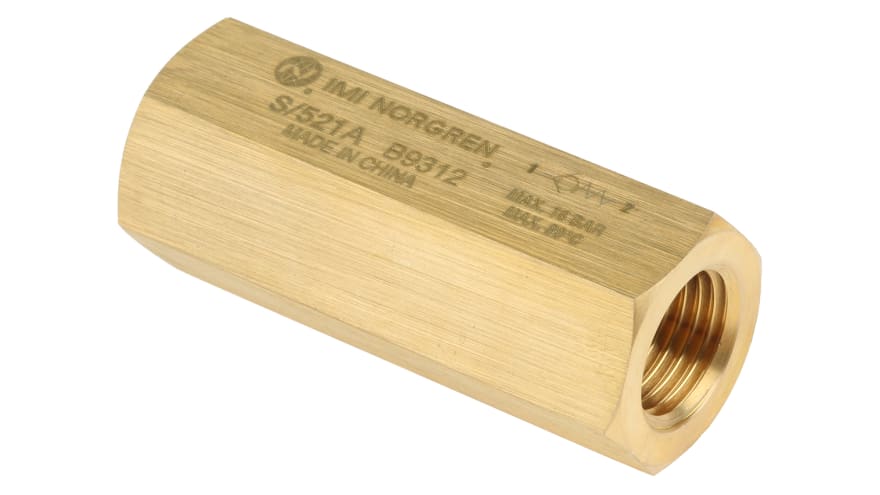

Name: Norgren S/520 Non Return Valve G 1/4 Female Inlet, G 1/4 Female Outlet, 0.3 to 16bar – Model: S/521
Brand: NORGREN
SKU: 722-570
Availability: InStock

Norgren S/520 Non Return Valve G 1/4 Female Inlet, G 1/4 Female Outlet, 0.3 to 16bar – Model: S/521

รหัสสินค้า: 722-570

รวมภาษีมูลค่าเพิ่มแล้ว

จัดส่งถึงปลายทางภายใน 4-7 วันทำการ

มีสินค้าอยู่ 65

ขอใบเสนอราคาและส่วนลด

รายละเอียดสินค้า / Product Details

**IMI Norgren Non-Return Valve, G1/4 Female Threaded Connections, 16 Bar Maximum Operating Pressure – S/520 Series – S/521**
Use this non-return valve from IMI Norgren to allow the free flow of air inside your pneumatic system. Its brass body material helps resist temperature buildups to prevent overheating. The standard female G1/4 threaded inlet and outlet connections are easy to screw in place into your pneumatic system, and they’ll stay fixed in place even under high-pressure use. This device is suitable for use with compressed air that’s being filtered and operates when lubricated or non-lubricated.

**Features & Benefits**
• Supplied with nitrile rubber seals that ensure a tight fit and stop compressed air from escaping
• Single-directional use for a simplified setup
• Operating pressure range between 0.3 and 16 bar for versatile use with different systems
• Less than 0.1 bar cracking pressure for precise and sensitive operation

**Applications**
• Mechanised agricultural equipment
• Pharmaceutical industry
• Manufacturing lines
• Industrial automation
• Bottling conveyor systems

**Can this non-return valve operate in harsh temperatures?**
Yes, this non-return valve has an operating temperature range of -20°C to +80°C, so you can rely on it in extreme industrial conditions.

คุณสมบัติ / Specifications
Inlet Connection Type: Threaded
Threaded Inlet Connection: G 1/4 Female
Outlet Connection Type: Threaded
Manufacturer Series: S/520
Threaded Outlet Connection: G 1/4 Female
Cracking Pressure: <0.1bar
Threaded Inlet Gender: Female
Minimum Operating Pressure: 0.3bar
Maximum Operating Pressure: 16 bar
Maximum Operating Temperature: +80°C
Threaded Outlet Gender: Female
Threaded Inlet Thread Size: 1/4 in
Threaded Outlet Thread Size: 1/4 in
Threaded Inlet Thread Standard: G
Threaded Outlet Thread Standard: G
Operating Pressure Range: 0.3 to 16bar
Body Material: Brass
Minimum Operating Temperature: -20°C
