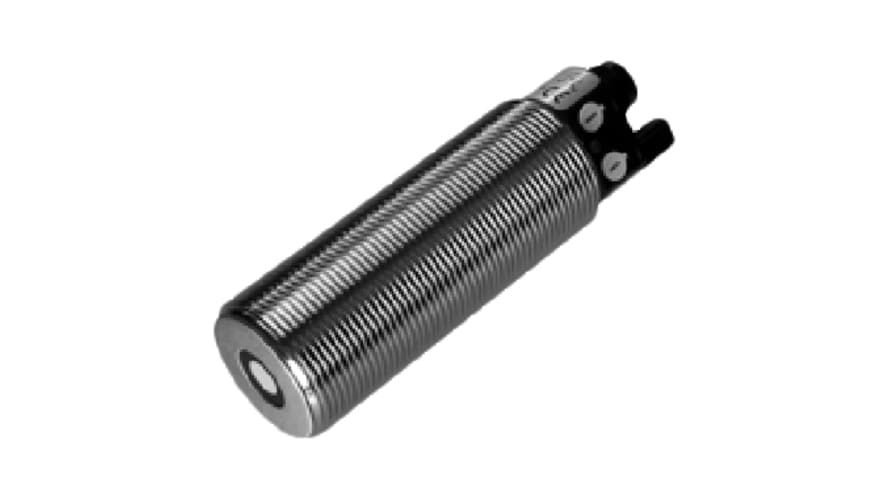

UC500-30GM70-2E2R2-V15, Pepperl + Fuchs Ultrasonic Barrel-Style Proximity Sensor, M30 x 1.5, 45 → 500 mm Detection, PNP Output, 12 – Model:

คุณสมบัติ / Specifications Sensor Technology: Ultrasonic Body Style: Barrel Thread Size: M30 x 1.5 Output Type: PNP Detection Range: 45 → 500 mm Terminal Type: 5-Pin M12 Connector Supply Voltage: 12 → 30 V dc IP Rating: IP65 Length: 88.8mm Switching Frequency: ≤5 Hz Maximum DC Voltage: 30V Switching Current: 150 mA Maximum Operating Temperature: +70°C Housing Material: Brass Nickel Plated Short Circuit Overload Protection: Yes Minimum Operating Temperature: -25°C Standards Met: CCC, cCSAus Listed, CE, cULus Listed, EN, IEC
