คุณสมบัติ / Specifications
Power Rating: 0.37 kW
Phase: 3
Supply Voltage: 400 V ac
Current Rating: 1.2 A
For Use With: AC Motors
Series: VLT FC51
Field Bus Communication Type: Modbus
IP Rating: IP20
Output Frequency: 0 → 200 (VVC+ Mode) Hz, 0 → 400 (U/f Mode) Hz
STO: No
Drive Type: Variable Speed
Mounting Type: Panel Mount
Filter Included: Yes
Control Panel: Yes
Overall Length: 90mm
Standards Met: ISO 14001, RoHS, WEEE
Overall Width: 239mm
Special Features: 1.5 kW, Excellent Reliability, Integrated Braking Chopper, User Friendly
Function: Motor Control
Overall Depth: 194mm
-17%
สินค้าในกลุ่มนี้ทั้งหมด
Danfoss Inverter Drive, 2.2 kW, 1 Phase, 230 V, 9.6 A, VLT FC51 Series – Model: 132F0007
Original price was: ฿27,782.38.฿23,151.98Current price is: ฿23,151.98. รวมภาษีมูลค่าเพิ่มแล้ว
Danfoss Inverter Drive, 22 kW, 3 Phase, 400 V ac, 43 A, VLT FC51 Series – Model: 132F0061
Original price was: ฿124,482.98.฿103,735.82Current price is: ฿103,735.82. รวมภาษีมูลค่าเพิ่มแล้ว

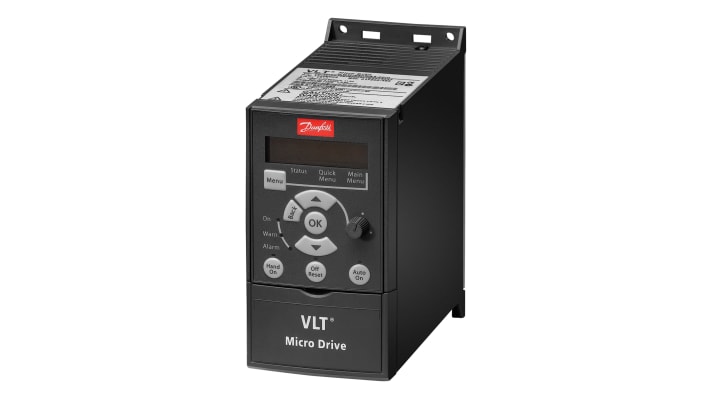

Danfoss Inverter Drive, 0.37 kW, 3 Phase, 400 V ac, 1.2 A, VLT FC51 Series – Model: 132F0017
รหัสสินค้า: 891-8811Original price was: ฿20,931.06.฿17,442.55Current price is: ฿17,442.55. รวมภาษีมูลค่าเพิ่มแล้ว
จัดส่งถึงปลายทางภายใน 10-14 วันทำการ
มีสินค้าอยู่ 12
ขอใบเสนอราคาและส่วนลด
รายละเอียดสินค้า / Product Details
**Inverter VLT FC51 – Three Phase Input**
The VLT Micro Drive is a general purpose drive that can control AC motors up to 22 kW.
It’s a small drive with maximum strength and reliability.
**Features and benefits**
VLT FC51 Inverter Drive
Three phase input
Delivered
without
Control Panel
– Control panel with LCD availabe in two versions:
– LCP without potentiometer IP54, stock no.
891-8915
– LCP with potentiometer IP21, stock no.
891-8918
Process PI-controller
Automatic Energy Optimizer (AEO)
Automatic Motor Tuning (AMT)
150% motor torque up to 1 minute
Flying start (catch a spinning motor)
Electronic Thermal relay (ETR)
Smart Logic Controller – digital/analog input/output
Built-in brake functions
Built-in RFI filter
Side-by-side mounting
**Applications:**
Centrifugal pumps
Radial/axial fans
Compressors
Conveyors
**Note**
Inverters are delivered without Control Panel, please order seperate.
****
Danfoss VLT FC51 Range
