คุณสมบัติ / Specifications
Maximum Operating Pressure: 250 bar
Minimum Operating Pressure: 25bar
Pressure Type: Positive Pressure
Suitable Media: Fluid, Oil
Manufacturer Series: 18D
Contact Operation: Normally Closed, Normally Open
Minimum Operating Temperature: -20°C
Maximum Operating Temperature: +80°C
IP Rating: IP65
Pressure Setting Range: 11 → 17bar
Minimum Pressure Setting: 11bar
Maximum Pressure Setting: 17bar
-20%
สินค้าในกลุ่มนี้ทั้งหมด
Norgren Pressure Switch, G 1/4 0.5bar to 8 bar – 0880300000000000
Original price was: ฿7,303.26.฿6,086.05Current price is: ฿6,086.05. รวมภาษีมูลค่าเพิ่มแล้ว
Norgren NO Reed Pneumatic Switch, M/50 Series, 170 V dc, 240 V ac, with LED indicator – Model: M/50/LSU/2V
Original price was: ฿2,253.66.฿1,878.05Current price is: ฿1,878.05. รวมภาษีมูลค่าเพิ่มแล้ว
Norgren Pressure Switch, 25bar to 250 bar
รหัสสินค้า: 883300000000000Original price was: ฿11,297.57.฿9,038.06Current price is: ฿9,038.06. รวมภาษีมูลค่าเพิ่มแล้ว
จัดส่งถึงปลายทางภายใน 4-7 วันทำการ
ขอใบเสนอราคาและส่วนลด
รายละเอียดสินค้า / Product Details

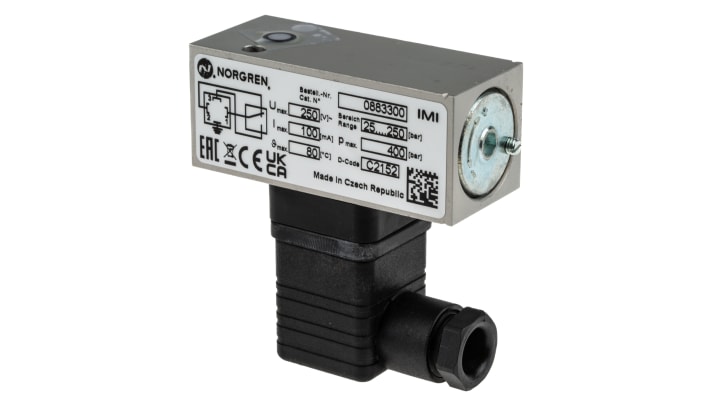

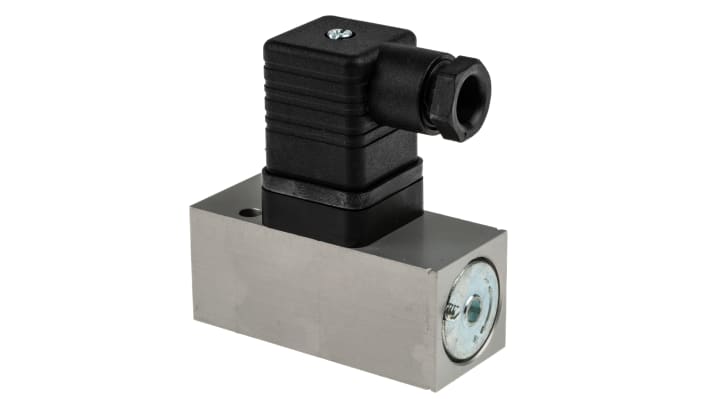

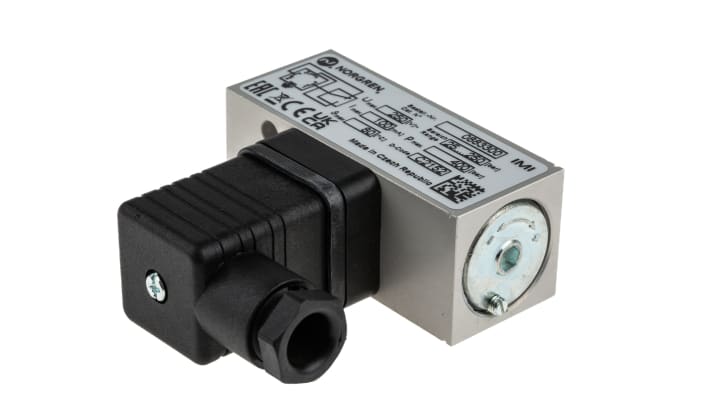

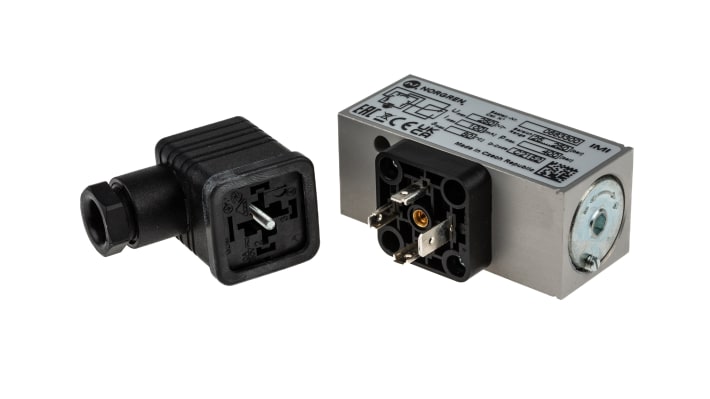

**IMI Norgren Pressure Switch, 25 to 250 Bar Operating Pressure – 18D Series – 0883300**
Use this pressure switch from IMI Norgren to monitor the internal pressure of your hydraulic equipment. It sends an electrical signal when it detects a change in the system’s vacuum, opening or closing circuits to help maintain even pressure. The switch operates between pressures of 25 and 250 bar to provide automatic vacuum control in heavy-duty hydraulic situations. Gold-plated contacts ensure the switch reliably transmits electrical signals even in low-voltage circuits.
**Features & Benefits**
• IP65 (ingress protection) rating indicates total protection against damage from dust and low-pressure jets of water
• Works with fluid temperatures between -20 and +80°C, making it suitable for harsh hydraulic applications
• Flange port to make straightforward connections with compatible equipment
• Resists vibrations up to 15g to perform under sudden pressure changes
**Applications**
• Lift and pulley systems
• Chemical and petrochemical processing
• Marine and offshore industries
**What media can I use this pressure switch with?**
This pressure switch is ideal for hydraulic applications. Neutral gases, lubricants and light fuel oils are all recommended media for this switch.
**Approvals**
UL; CSA
