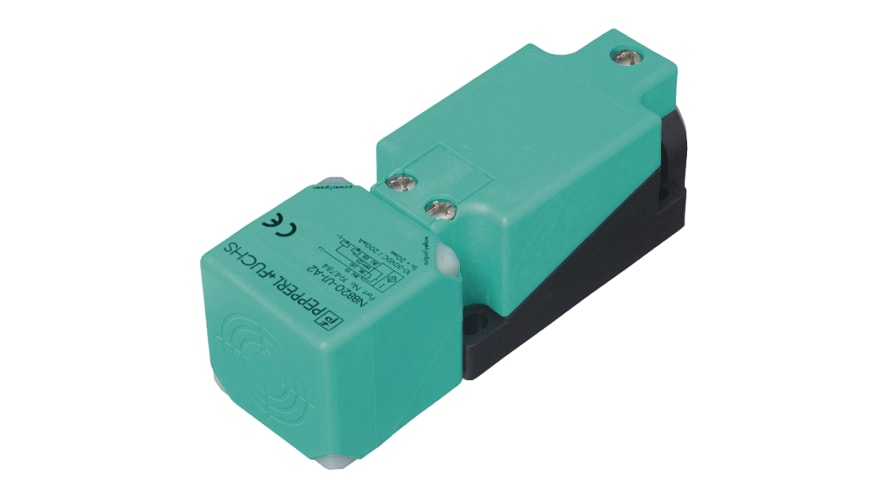

NBN40-U1-A0, Pepperl + Fuchs Inductive Block-Style Proximity Sensor, 40 mm Detection, NPN Output, 10 → 30 V dc, IP68, IP69K – Model: NBN40-U

คุณสมบัติ / Specifications Sensor Technology: Inductive Body Style: Block Output Type: NPN Detection Range: 40 mm Terminal Type: M20 Gland Supply Voltage: 10 → 30 V dc IP Rating: IP68, IP69K Length: 118mm Width: 40mm Depth: 40mm Maximum DC Voltage: 30V Mounting Type: Non-Flush Switching Current: 200 mA Maximum Operating Temperature: +85°C Maximum Switching Frequency: 150Hz Housing Material: Polyamide Short Circuit Overload Protection: Yes Minimum Operating Temperature: -25°C Reverse Polarity Protection: Yes Standards Met: CCC, EN 60497-5-2: 2007, IEC 60947-5-2: 2007, UL
