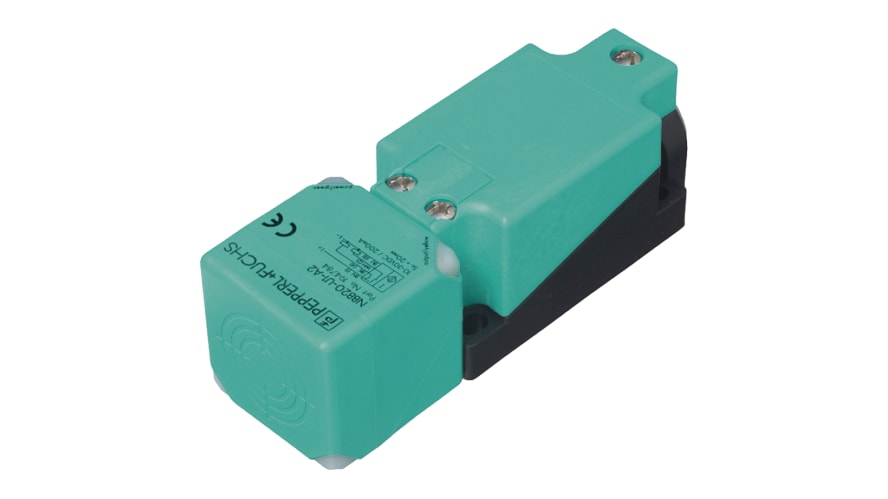

NBN40-U1-E3, Pepperl + Fuchs Inductive Block-Style Proximity Sensor, 40 mm Detection, PNP Output, 10 → 30 V dc, IP68, IP69K – Model: NBN40-U

คุณสมบัติ / Specifications Sensor Technology: Inductive Body Style: Block Output Type: PNP Detection Range: 40 mm Terminal Type: M20 Gland IP Rating: IP68, IP69K Supply Voltage: 10 → 30 V dc Length: 118mm Width: 40mm Depth: 40mm Maximum DC Voltage: 30V Mounting Type: Non-Flush Switching Current: 200 mA Maximum Switching Frequency: 150Hz Maximum Operating Temperature: +85°C Housing Material: Polyamide Reverse Polarity Protection: Yes Minimum Operating Temperature: -25°C Short Circuit Overload Protection: Yes Standards Met: CCC, EN 60497-5-2: 2007, IEC 60947-5-2: 2007, UL
