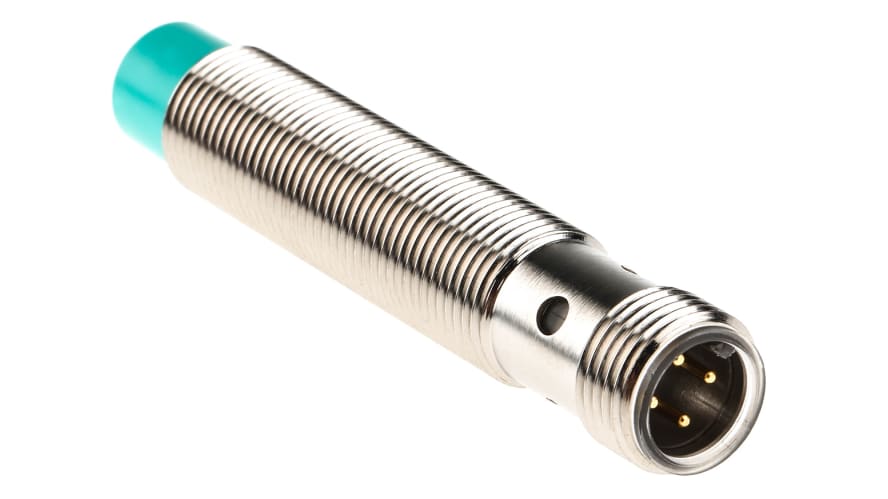

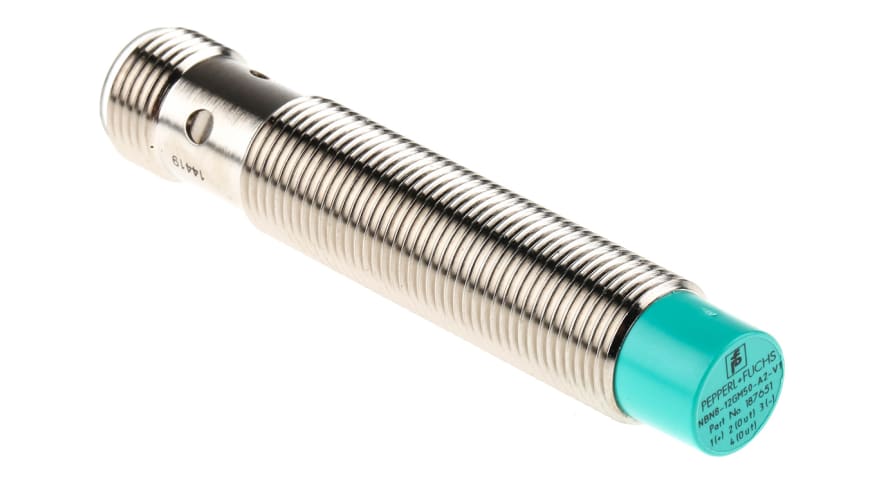

NBN8-12GM50-A2-V1, Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, M12 x 1, 8 mm Detection, PNP Output, 5 → 36 V dc, IP68 – Model:

คุณสมบัติ / Specifications Sensor Technology: Inductive Body Style: Barrel Thread Size: M12 x 1 Output Type: PNP Detection Range: 8 mm Terminal Type: 4-Pin M12 Connector IP Rating: IP68 Supply Voltage: 5 → 36 V dc Length: 65mm Maximum DC Voltage: 36V Mounting Type: Non-Flush Switching Current: 200 mA Housing Material: Brass, White Bronze Coated Maximum Switching Frequency: 1650Hz Shielding: Partial Maximum Operating Temperature: +85°C Reverse Polarity Protection: Yes Minimum Operating Temperature: -40°C Short Circuit Overload Protection: Yes
