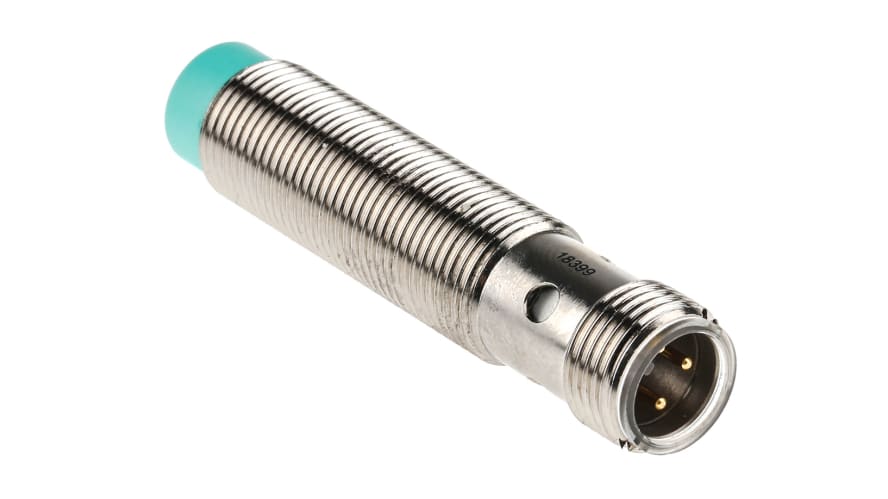

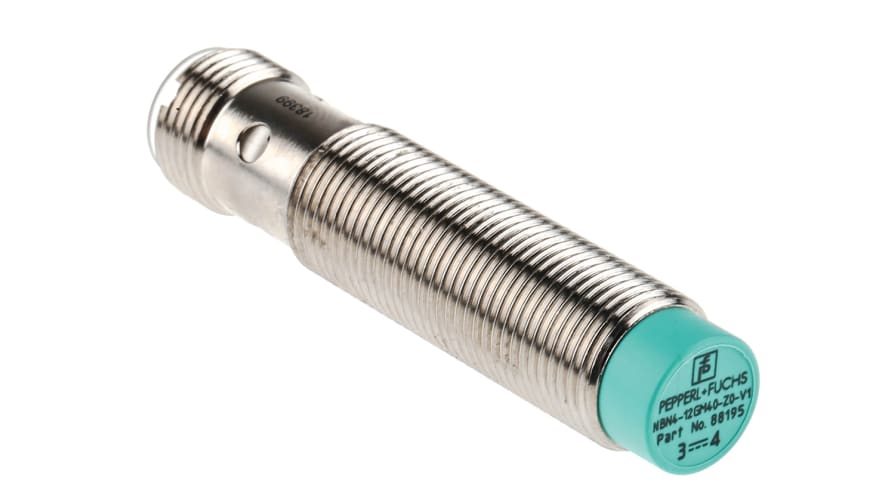

NBN4-12GM40-Z0-V1, Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, M12 x 1, 4 mm Detection, 5 → 30 V dc, IP67 – Model: NBN4-12GM40-

คุณสมบัติ / Specifications Sensor Technology: Inductive Body Style: Barrel Thread Size: M12 x 1 Detection Range: 4 mm Terminal Type: 4-Pin M12 Connector Supply Voltage: 5 → 30 V dc IP Rating: IP67 Length: 55mm Maximum DC Voltage: 60V Mounting Type: Non-Flush Switching Current: 100 mA Maximum Operating Temperature: +70°C Housing Material: Brass Nickel Plated Shielding: Partial Maximum Switching Frequency: 1kHz Short Circuit Overload Protection: Yes Minimum Operating Temperature: -25°C Reverse Polarity Protection: Yes
