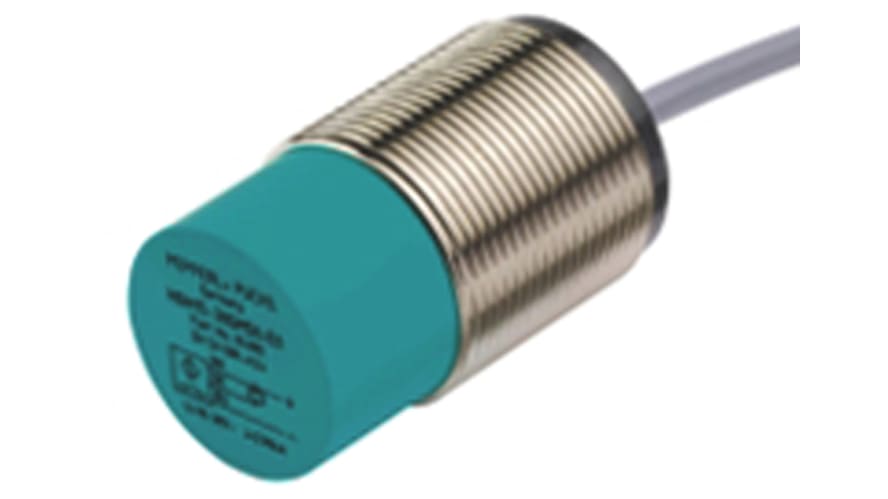

NBN15-30GM50-E0, Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, M30 x 1.5, 15 mm Detection, NPN Output, 5 → 36 V dc, – Model: NBN1

คุณสมบัติ / Specifications Sensor Technology: Inductive Body Style: Barrel Thread Size: M30 x 1.5 Output Type: NPN Detection Range: 15 mm Terminal Type: Cable Supply Voltage: 5 → 36 V dc IP Rating: IP68 Length: 50mm Maximum DC Voltage: 36V Mounting Type: Non-Flush Switching Current: 200 mA Shielding: Partial Maximum Switching Frequency: 1150Hz Housing Material: Brass, White Bronze Coated Maximum Operating Temperature: +85°C Short Circuit Overload Protection: Yes Reverse Polarity Protection: Yes Minimum Operating Temperature: -40°C
