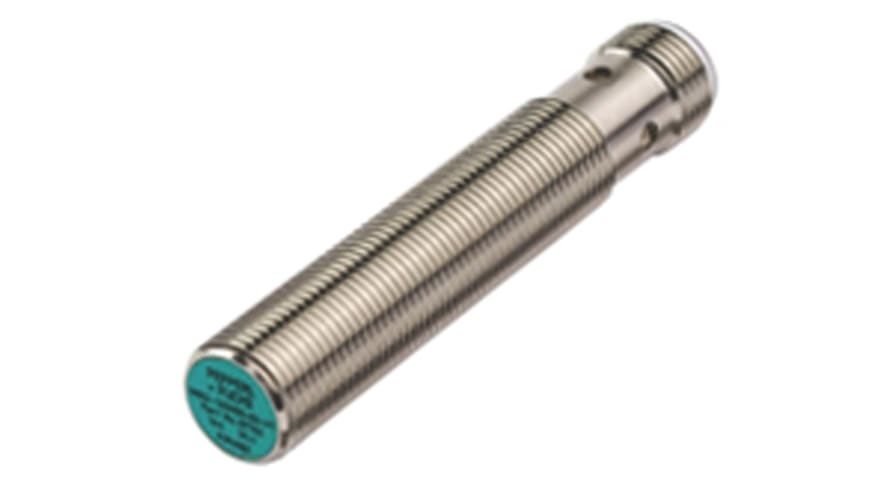

NBB2-12GM50-E3-V1, Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, M12 x 1, 2 mm Detection, PNP Output, 5 → 36 V dc, IP68 – Model:

คุณสมบัติ / Specifications Sensor Technology: Inductive Body Style: Barrel Thread Size: M12 x 1 Output Type: PNP Detection Range: 2 mm Terminal Type: 4-Pin M12 Connector IP Rating: IP68 Supply Voltage: 5 → 36 V dc Length: 65mm Maximum DC Voltage: 36V Mounting Type: Flush Switching Current: 200 mA Shielding: Unshielded Maximum Switching Frequency: 3500Hz Maximum Operating Temperature: +85°C Housing Material: Brass, White Bronze Coated Minimum Operating Temperature: -40°C Reverse Polarity Protection: Yes Short Circuit Overload Protection: Yes
