คุณสมบัติ / Specifications
Number of Ports: 2
Connection Size: 1/2in
Connection: 1/2 in G
Operation: Damped
Default Valve Position: NC
Suitable Applications: Liquid, Neutral Gas
Type: 2/2
Orifice Diameter: 12mm
Body Material: Brass
Maximum Working Pressure: 16 bar
Operating Temperature Range: -10 → 50 °C
Minimum Operating Temperature: -10°C
Maximum Operating Temperature: +50°C
Flow Factor Kv: 3.8m³/h
-20%
สินค้าในกลุ่มนี้ทั้งหมด
IMI Norgren Pneumatic Piston Rod Cylinder - 50mm Bore, 250mm Stroke, PRA/802000/M Series, Double Acting – Model: PRA/802050/M/250
Original price was: ฿9,470.96.฿7,892.47Current price is: ฿7,892.47. รวมภาษีมูลค่าเพิ่มแล้ว
IMI Norgren Pneumatic Cylinder - 16mm Bore, 15mm Stroke, RM/92016/M Series, Double Acting – Model: RM/92016/M/15
Original price was: ฿5,903.09.฿4,919.24Current price is: ฿4,919.24. รวมภาษีมูลค่าเพิ่มแล้ว
IMI Norgren Solenoid Valve 8240200.9100.00000, 2 port(s) , NC, 1/2in
รหัสสินค้า: 8240200.9100.00000Original price was: ฿5,248.00.฿4,198.00Current price is: ฿4,198.00. รวมภาษีมูลค่าเพิ่มแล้ว
จัดส่งถึงปลายทางภายใน 4-7 วันทำการ
ขอใบเสนอราคาและส่วนลด
รายละเอียดสินค้า / Product Details

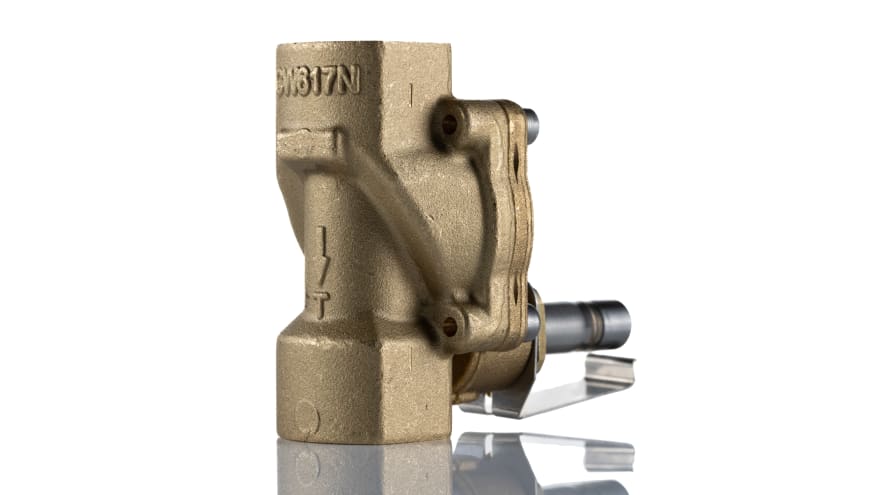

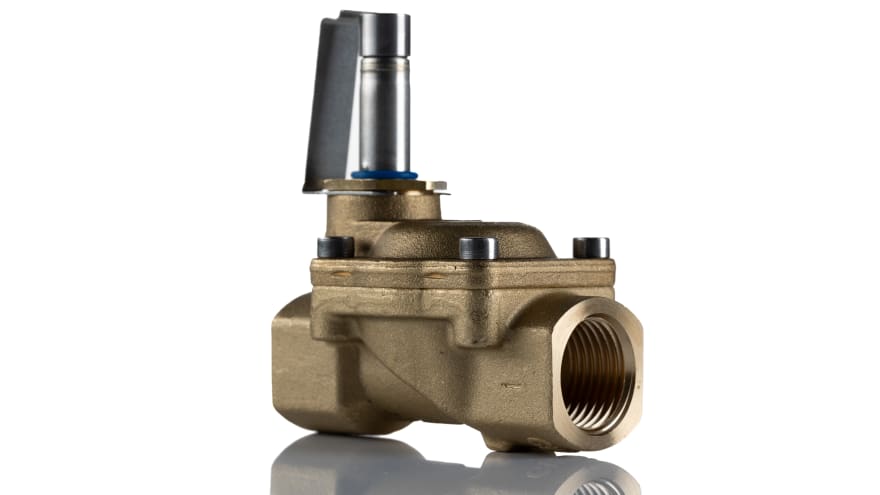

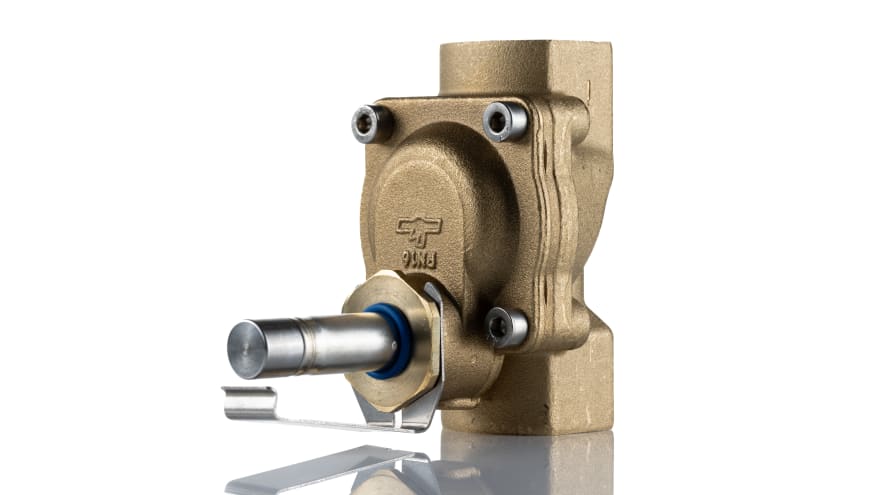

**IMI Norgren Solenoid Valve, NC Function, 12mm Orifice Diameter – 82400/82410 Series – 8240200.9100.00000**
Controlling your fluids is a breeze with this G1/2 solenoid valve from IMI Norgren. When linked to a coil, it transmits signals to an armature that opens to allow fluid to pass through the unit. This remote mechanism keeps your industrial processes flowing seamlessly and leaves you free to get on with the rest of your to-do list. Thanks to its wide operating range between 0.1 and 16 bar, this is a versatile choice that’s happy handling high and low pressures.
**Features & Benefits**
• Broad ambient operating temperature between -10°C and +50°C, for reliability in challenging environments
• Brass body is strong and resists corrosion to ensure a longer service life
• NBR seal is resistant to abrasion and oil damage to prevent leakage and support system efficiency
• Installs without tools for a simple and speedy setup
**Applications**
• Medical and dental equipment
• Irrigation networks
• Pressure pumps
• HVAC systems
**What fluids is this unit compatible with?**
This solenoid valve is designed for use with neutral gases and liquids and can handle fluid temperatures between -10°C and +90°C, so it’s highly versatile.
