คุณสมบัติ / Specifications
Function: NC
Connection Port Thread: G 3/8
Actuation Type: Solenoid
Manufacturer Series: 82400
Number of Ports: 2
Body Material: Brass
Maximum Flow Rate: 3m³/h
Minimum Operating Pressure: 0.1bar
Minimum Operating Temperature: -10°C
Thread Size: 3/8in
Number of Positions: 2
Maximum Operating Pressure: 16 bar
Maximum Operating Temperature: +50°C
Thread Standard: G
-20%
สินค้าในกลุ่มนี้ทั้งหมด
Norgren 16042 Series – Model: 160420048
Original price was: ฿2,700.14.฿2,160.11Current price is: ฿2,160.11. รวมภาษีมูลค่าเพิ่มแล้ว
Norgren 16 Series, G 1/2 Female to G 1/8 Female, Tube-to-Tube Connection Style, 16022 – Model: 160224818
Original price was: ฿1,581.81.฿1,265.45Current price is: ฿1,265.45. รวมภาษีมูลค่าเพิ่มแล้ว
Norgren NC Solenoid Pilot Valve – Solenoid G 3/8 82400 Series
รหัสสินค้า: 8240100.9100.00000Original price was: ฿5,587.00.฿4,469.00Current price is: ฿4,469.00. รวมภาษีมูลค่าเพิ่มแล้ว
จัดส่งถึงปลายทางภายใน 4-7 วันทำการ
ขอใบเสนอราคาและส่วนลด
รายละเอียดสินค้า / Product Details

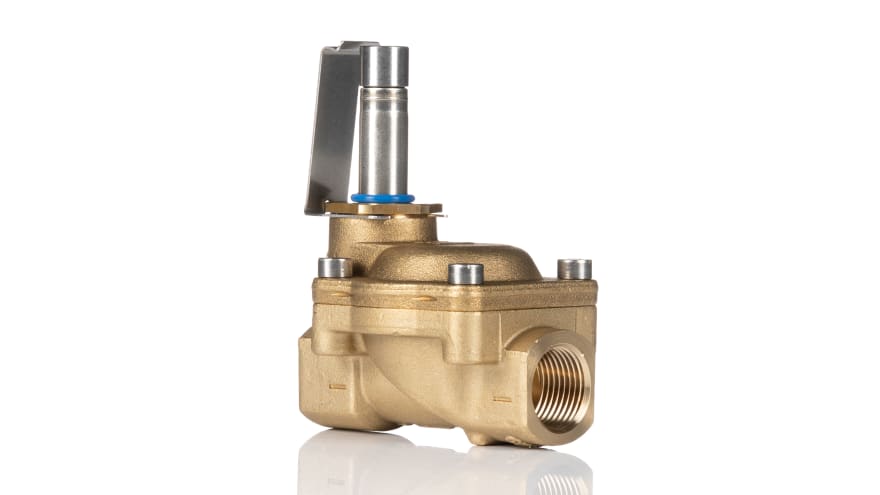

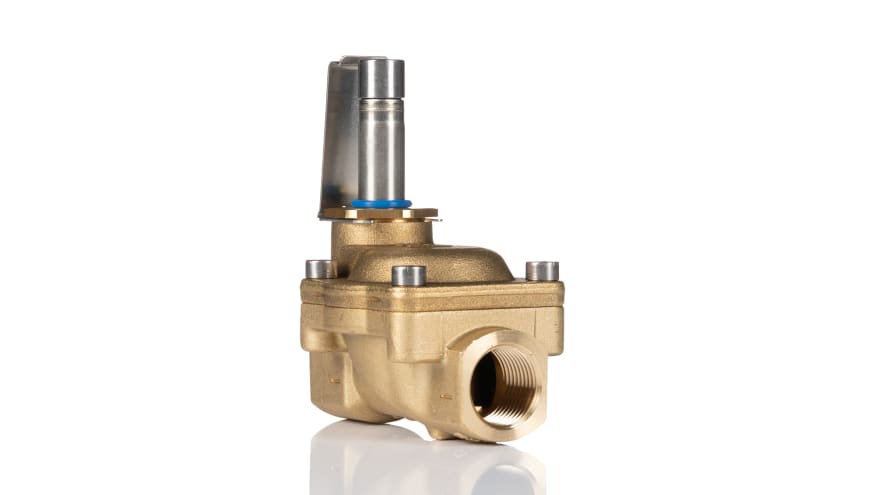

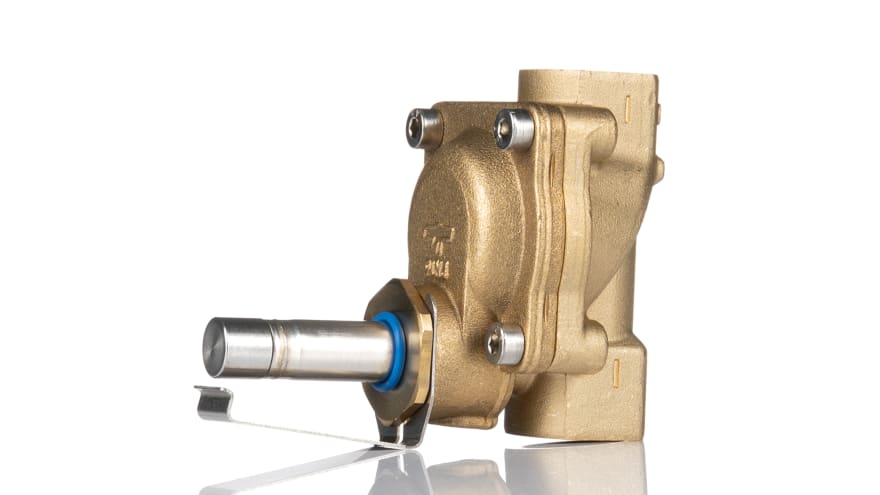

**IMI Norgren Solenoid Pilot Valve, G3/8 Port, Seat Type – 82400 Series – 8240100.9100.00000**
Got neutral gases or liquids flowing through a pipe? Get them headed in the right direction with this solenoid pilot valve from IMI Norgren. It’s a 2/2-way seat valve, meaning it has two ports (inlet and outlet) and two switching planes (open and closed). The valve is normally closed and has a spring return action, so you can rest assured it will always shut tight even if the power fails. Thanks to a maximum operating pressure of 16 bar and its ability to handle high flow rates of up to 3m³/h, this is a versatile choice for your industrial setup.
**Features & Benefits**
• Stainless steel components are corrosion-resistant for a long service life
• Compact size of 78.5 (L) x 60 (H) x 44mm (W) makes it suitable for use in small spaces
• Click-on fitting system means you can change the solenoid easily without specialised tools
**Applications**
• Factory automation
• Process control
• Automotive industry
**What temperature range can this pilot valve operate in?**
It’s suitable for fluids between -10°C and +90°C and an ambient operating temperature of between -10°C and +50°C, so it can withstand tough conditions.
**Can I use it for contaminated fluids?**
You can, but you should insert a strainer to filter out particles.
