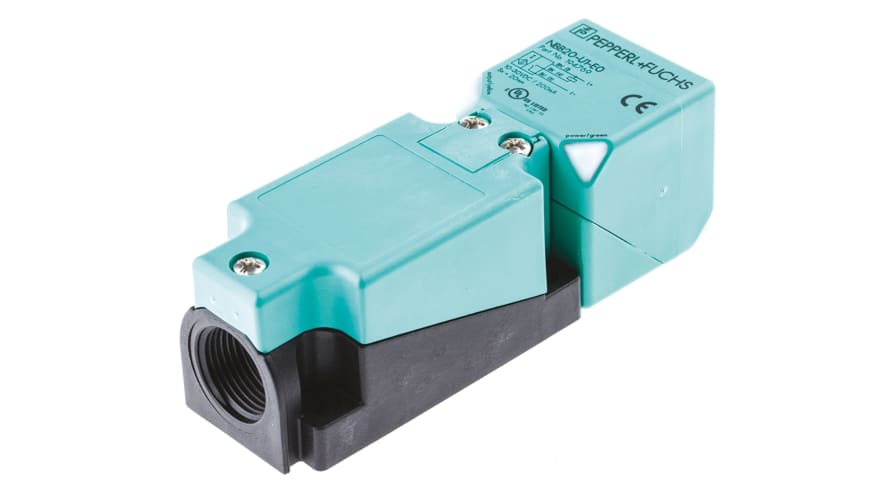

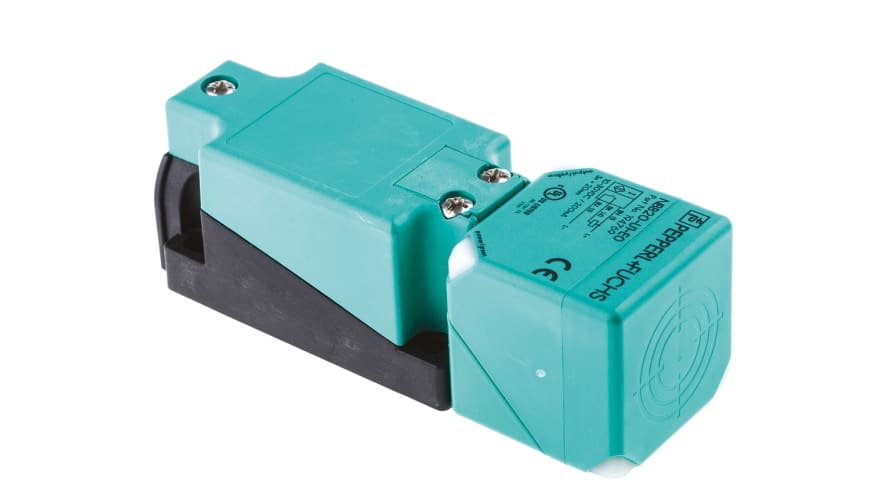

NBB20-U1-E0, Pepperl + Fuchs Inductive Block-Style Proximity Sensor, 20 mm Detection, NPN Output, 10 → 30 V dc, IP69K – Model: NBB20-U1-E0

คุณสมบัติ / Specifications Sensor Technology: Inductive Body Style: Block Output Type: NPN-NO Detection Range: 20 mm Terminal Type: M20 Gland IP Rating: IP69K Supply Voltage: 10 → 30 V dc Length: 118mm Width: 40mm Depth: 40mm Maximum DC Voltage: 30V Mounting Type: Flush Mount Switching Current: 200 mA Housing Material: Polyamide Maximum Switching Frequency: 150Hz Maximum Operating Temperature: +85°C Short Circuit Overload Protection: Yes Minimum Operating Temperature: -25°C Reverse Polarity Protection: Yes
