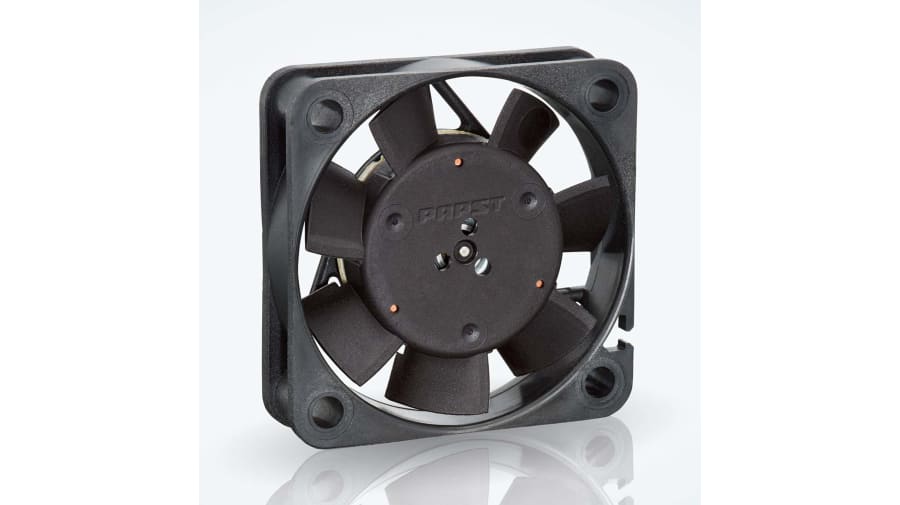

Name: ebm-papst 400 F Series Axial Fan, 12 V dc, DC Operation, 9m³/h, 0.8W, 66mA Max, IP20, 40 x 40 x 10mm – Model: 412FH
Brand: ebm-papst
SKU: 200-7766
Availability: InStock

ebm-papst 400 F Series Axial Fan, 12 V dc, DC Operation, 9m³/h, 0.8W, 66mA Max, IP20, 40 x 40 x 10mm – Model: 412FH

รหัสสินค้า: 200-7766

รวมภาษีมูลค่าเพิ่มแล้ว

จัดส่งถึงปลายทางภายใน 4-7 วันทำการ

มีสินค้าอยู่ 442

ขอใบเสนอราคาและส่วนลด

รายละเอียดสินค้า / Product Details

**ebm-papst 400 Series Slimline DC Axial Fans**
From ebm-papst, the Series 400 of DC axial fans are designed to deliver high performance while retaining a space saving size. This range of axial fans have sleeve bearings, which offer cost effective protection of the central shaft from environmental factors. This results in a simplified and economic design that is suitable for many thermal management applications.
With efficient brushless drives, and integrated communication electronics that prevent against revers polarity, this series of fans are both reliable and easy to use.

**Features and Benefits**
• Low profile
• Low power consumption
• Air exhaust over struts
• Protected against reverse polarity and locking.
• Integrated electronic communication
• Fibreglass reinforced plastic construction

**Applications**
These compact fans are ideal for installation in ACTA (Advanced Telecommunications Computing Architecture), which means they are suitable for a variety of applications.
• Cabinet Cooling
• Switch Networks
• Power Systems
• Telecom
• Medical
• Industrial

**FAQ**
Q: What are the advantages of Sleeve Bearings fans over Ball Bearing fans?
A: While ball bearing fans can typically run for longer and in more harsh conditions than sleeve bearing, sleeve bearing have the advantage of having a simplified, often more cost effective design. Because of their simplified design, sleeve bearings are more impact resistance.
Q: Are these fans easy to use?
A: With simple screw installation, and with their necessary communication electronics integrated into the design, these DC axial fans are easy to install and operate.
Q: What are the advantages of this fan over competitors?
A: The compact and thin design of thee fans makes them useful for low profile applications. Where space-saving is a concern, this model of fan is ideal.
Q: Are there accessories available for this fan?
A: There is a finger guard (
251-081
) available for this series of fans.

**Approvals**
UL; CSA

คุณสมบัติ / Specifications
Supply Voltage: 12 V dc
Height: 40mm
AC or DC Operation: DC
Width: 40mm
Power Consumption: 0.8W
Depth: 10mm
Maximum Current: 66mA
Dimensions: 40 x 40 x 10mm
Termination Type: Lead Wire
Air Flow: 9m³/h
Noise Level: 26dB
Fan Speed: 6000rpm
Bearing Type: Sleeve
IP Rating: IP20
