Name: Norgren Pressure Switch, G 1/8 0bar to 10 bar
Brand: NORGREN
SKU: 4015600
Availability: InStock

Norgren Pressure Switch, G 1/8 0bar to 10 bar

รหัสสินค้า: 4015600

รวมภาษีมูลค่าเพิ่มแล้ว

จัดส่งถึงปลายทางภายใน 4-7 วันทำการ

ขอใบเสนอราคาและส่วนลด

รายละเอียดสินค้า / Product Details

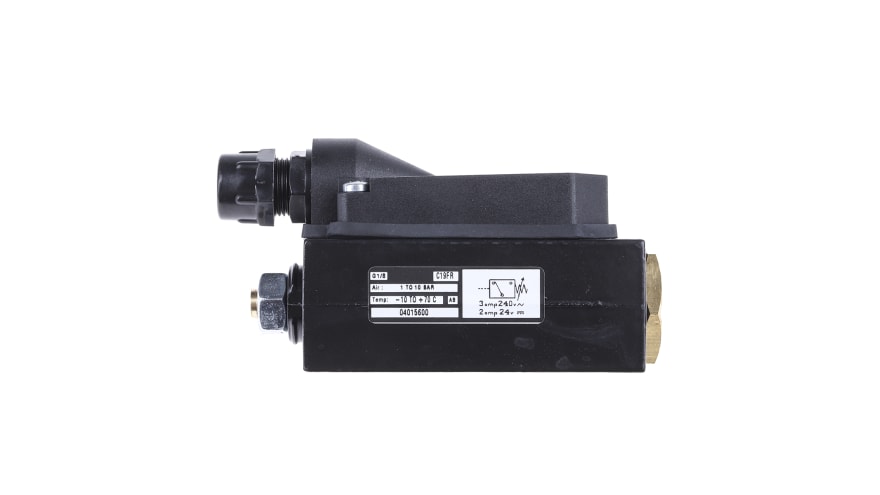

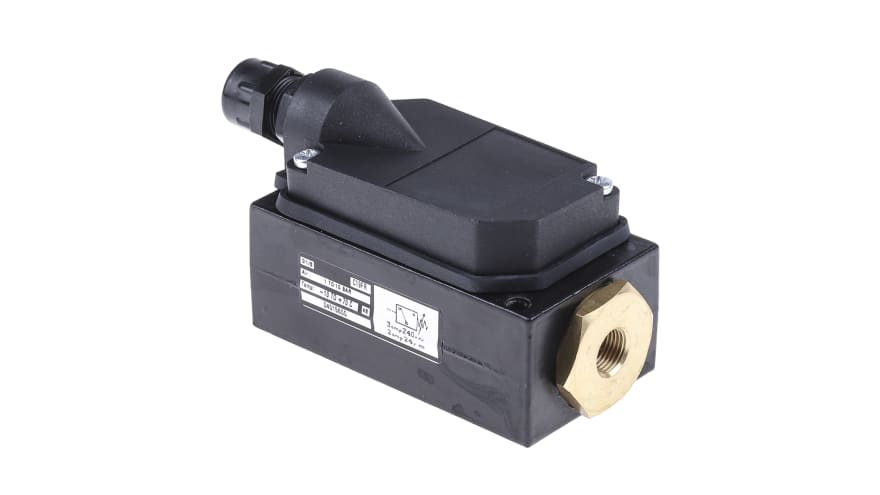

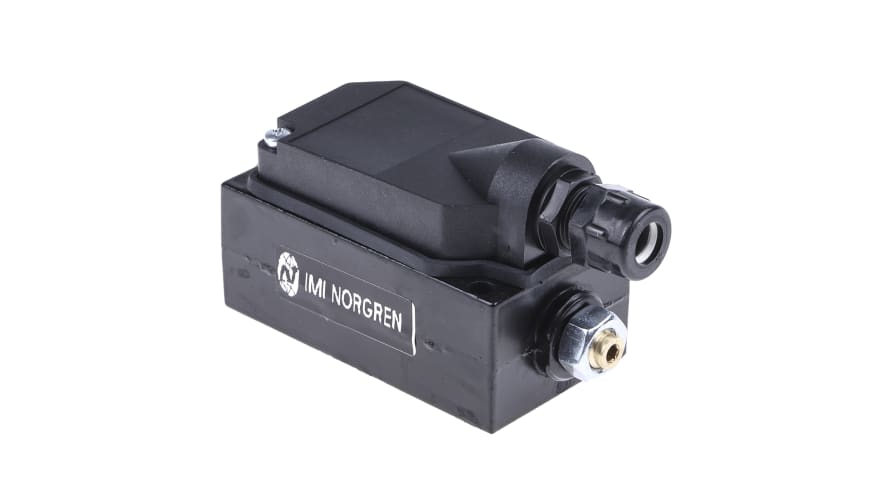

**IMI Norgren Pressure Switch, 1/8in Thread, 10 Bar Maximum Operating Pressure – 040 Series – 04015600**
Monitor and convert pneumatic signals to electrical signals with this pressure switch from IMI Norgren. Its durable zinc alloy body provides resistance to mechanical stress, so it’s a good choice for harsh conditions. With a broad operating pressure range of 1.5 to 10 bar, you can safely use it in both low-pressure and high-pressure applications. The unit comes with nitrile rubber seals that stop air leakage and support effective operation. You’ll find it compatible with other standard equipment and easy to set up, thanks to a 1/8in thread size.

**Features & Benefits**
• IP65 rated to withstand dust and low-pressure water jets
• 2mm push-on spade connectors for simple manual installation
• Wide operating temperature range of -10°C and 70°C for use in harsh conditions
• Light weight of 0.35kg for easy handling and minimal system strain

**Applications**
• Air compressors
• Hydraulic systems
• Manufacturing lines

**What’s the difference between a pressure switch and a pressure sensor?**
A pressure switch monitors and converts pressure in pneumatic systems. A pressure sensor records and relays pressure readouts to a remote location or device.

คุณสมบัติ / Specifications
Maximum Operating Pressure: 10 bar
Minimum Operating Pressure: 0bar
Pressure Type: Positive Pressure
Connection: G 1/8
Suitable Media: Air, Gas
Voltage Rating: 24 V dc, 240V ac
Connection Thread Size: 1/8 in
Manufacturer Series: 040
Contact Operation: Normally Closed, Normally Open
Connection Thread Standard: G
Minimum Operating Temperature: -10°C
Maximum Operating Temperature: +70°C
IP Rating: IP65
Pressure Setting Range: 1.5 → 10bar
Contact Rating: 3A
Minimum Pressure Setting: 1.5bar
Maximum Pressure Setting: 10bar
