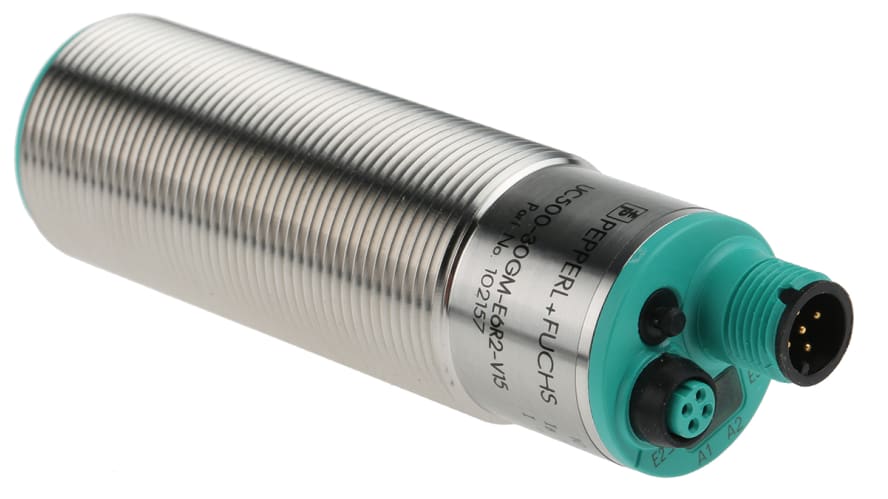

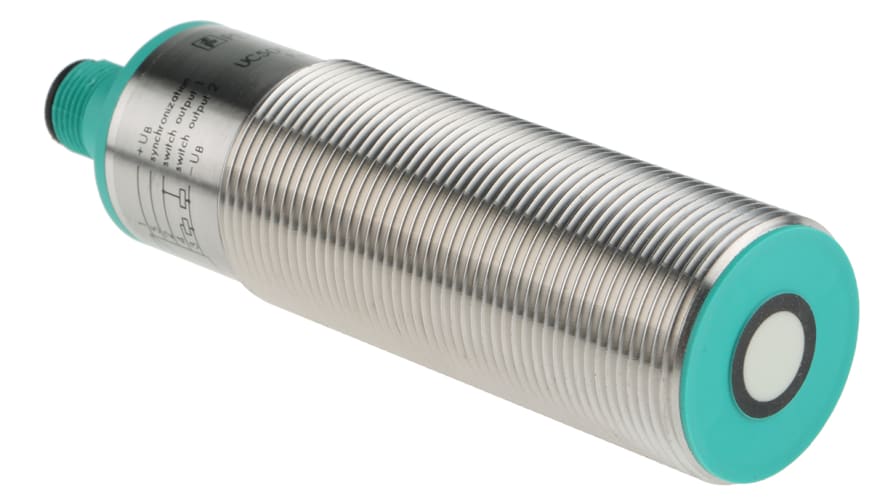

UC500-30GM-E6R2-V15, Pepperl + Fuchs Ultrasonic Barrel-Style Proximity Sensor, M30 x 1.5, 30 → 500 mm Detection, PNP Output, 10 – Model: UC5

คุณสมบัติ / Specifications Sensor Technology: Ultrasonic Thread Size: M30 x 1.5 Body Style: Barrel Output Type: PNP-2NO/NC Detection Range: 30 → 500 mm Terminal Type: M12 - 5 Pin IP Rating: IP65 Supply Voltage: 10 → 30 V dc Length: 121.5mm Switching Frequency: ≤7 Hz Maximum DC Voltage: 30V Switching Current: 200 mA Maximum Operating Temperature: +70°C Housing Material: PBT Minimum Operating Temperature: -25°C Short Circuit Overload Protection: Yes
