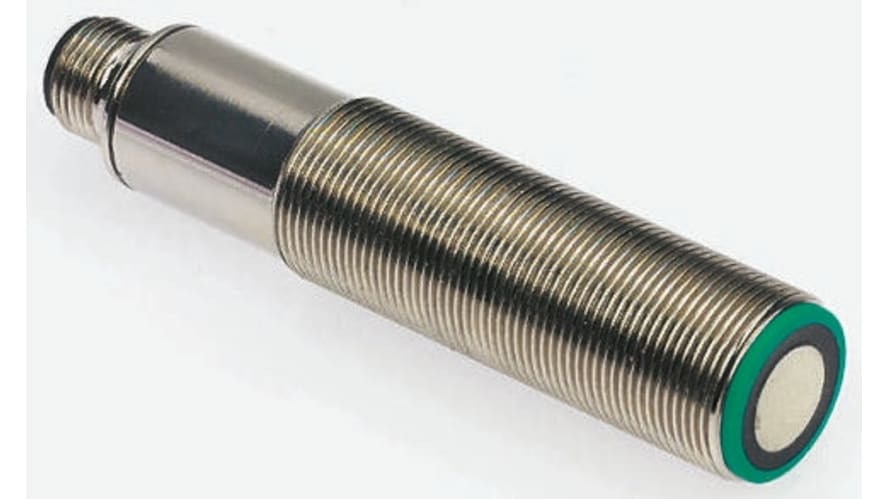

UB500-18GM75-E4-V15, Pepperl + Fuchs Ultrasonic Barrel-Style Proximity Sensor, M18 x 1, 30 → 500 mm Detection, NPN Output, 10 – Model: UB500

คุณสมบัติ / Specifications Sensor Technology: Ultrasonic Thread Size: M18 x 1 Body Style: Barrel Output Type: NPN-NO/NC Detection Range: 30 → 500 mm Terminal Type: M12 - 5 Pin IP Rating: IP65 Supply Voltage: 10 → 30 V dc Length: 85mm Switching Frequency: 8 Hz Maximum DC Voltage: 30V Switching Current: 200 mA Housing Material: Nickel Plated Brass Maximum Operating Temperature: +70°C Minimum Operating Temperature: -25°C Short Circuit Overload Protection: Yes
