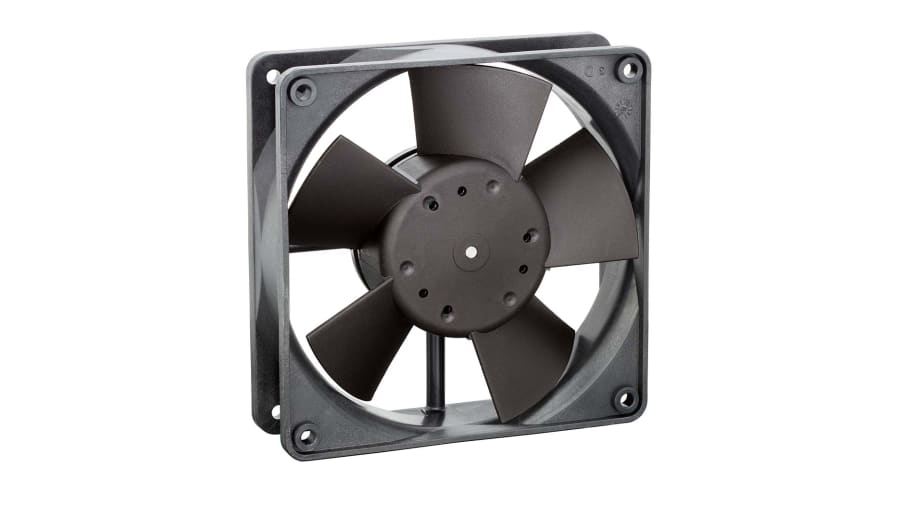

Name: ebm-papst 4300 Series Axial Fan, 24 V dc, DC Operation, 170m³/h, 5.7W, 208mA Max, IP68, 119 x 119 x 32mm – Model: 4314U
Brand: ebm-papst
SKU: 337-3317
Availability: OutOfStock

ebm-papst 4300 Series Axial Fan, 24 V dc, DC Operation, 170m³/h, 5.7W, 208mA Max, IP68, 119 x 119 x 32mm – Model: 4314U

รหัสสินค้า: 337-3317

รวมภาษีมูลค่าเพิ่มแล้ว

โปรดติดต่อเราเพื่อสั่งซื้อ

สินค้าหมดแล้ว

รายละเอียดสินค้า / Product Details

**ebm-papst 4314 Series Compact DC Axial Fans**

**What is a DC axial fan?**
An axial fan is a device that creates airflow by using a motor to rotate blades housed within in a square or round frame. The rotating fan blades draw air into the fan and expel the flow in the same direction across a surface to cool it. Axial fans are a vital component ensuring the smooth operation of machinery and electronic equipment. Keeping equipment cool is Crucial as overheating can lead to serious complications including premature deterioration of parts, shorter life spans and sometimes, complete failure.

**ebm-papst 4314 Series Compact DC Axial Fans**
From ebm-papst, the 4314 series of high performance ball bearing fans offering a cost effective cooling solution without sacrificing on quality or reliability. The compact DC axial fans are expertly designed supporting excellent efficiency long service life and smooth operation. With a robustly constructed PBT housing and PA impeller, the 4314 series fans are an ideal for multitude of cooling applications.

**Key features and Benefits**
• Fully integrated electronic commutation
• Clockwise rotation / Exhaust over struts operation
• Exceptional life expectancy
• Protected against reverse polarity and locking
• Expertly designed aerodynamic fan blades supporting excellent efficiency and low noise levels.
• Maintenance free ball bearing system, promoting excellent performance and life expectancy
• IP20 ingress protection on all models except for U types which have IP68 ingress protection. R types have a mositure protective coating on the circuit board and windings
• Type L: Low speed
• Type M: Medium speed
• Type NH: High Speed

**Q and A’s**
How is the fan mounted?
The 4314 series of DC axial fans have 4 x 4.3 mm holes in each outside corner of the frame.
How is the fan connected?
The 4314 series of DC axial fans are electrically connected via 310 mm 22 AWG wires
Are there any accessories available?
Finger guards are available separately, see part numbers
826-1354
and
826-1357
. Finger guards are designed to protect contact with rotating parts and the ingress of foreign particles.

**Applications**
Compact DC axial fans are utilised across all areas of industry where the cooling of equipment and electronics is essential. Some of the most common used for DC fans are;
• Electrical cabinets and Enclosures – Installed into cabinets and enclosures where critical electronic equipment is housed. Keeping components cool is essential in extending service life and preventing premature failure.
• Laptops and Computer towers – Compact DC fans are ideal for incorporating into computers and hardware due to their small frame size and depth.
• Server racks – Axial fans are used to keep hubs, routers and patch panels cool.

**IP68 Rated Axial Fan for Harsh Environments**
These high performance fans are also protected from dust ingress and a high degree of moisture ingress. They are ideal for operation in harsh environments and suitable for industrial grade applications.

**Approvals**
UL

คุณสมบัติ / Specifications
Supply Voltage: 24 V dc
Height: 119mm
AC or DC Operation: DC
Width: 119mm
Power Consumption: 5.7W
Maximum Current: 208mA
Depth: 32mm
Dimensions: 119 x 119 x 32mm
Air Flow: 170m³/h
Termination Type: Lead Wire
Noise Level: 45dB
Fan Speed: 2800rpm
Bearing Type: Ball
IP Rating: IP68
