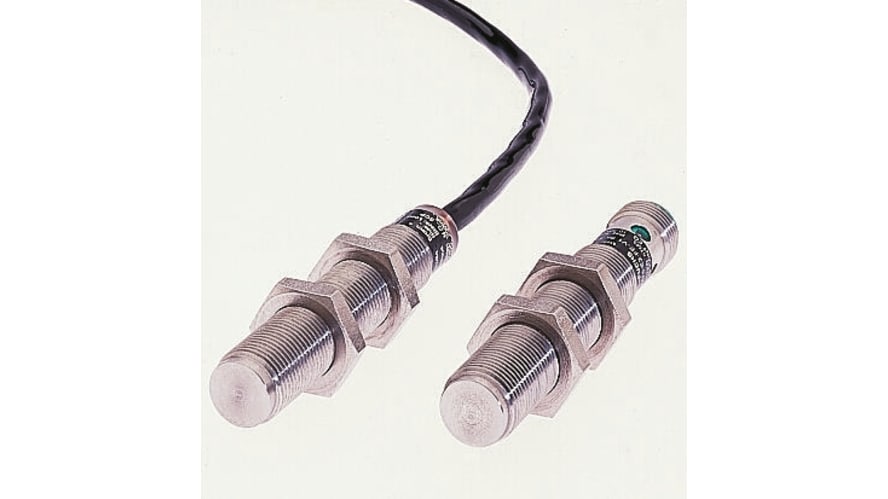

NMB2-12GM65-E0-FE-V1, Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, M12 x 1, 2 mm Detection, NPN Output, 10 → 30 V dc, IP69K – Mo

คุณสมบัติ / Specifications Sensor Technology: Inductive Body Style: Barrel Thread Size: M12 x 1 Output Type: NPN-NO Detection Range: 2 mm Terminal Type: M12 - 4 Pin Supply Voltage: 10 → 30 V dc IP Rating: IP69K Length: 65mm Maximum DC Voltage: 30V Mounting Type: Flush Mount Switching Current: 200 mA Housing Material: Stainless Steel Maximum Operating Temperature: +70°C Maximum Switching Frequency: 100Hz Minimum Operating Temperature: -40°C Short Circuit Overload Protection: Yes Reverse Polarity Protection: Yes
