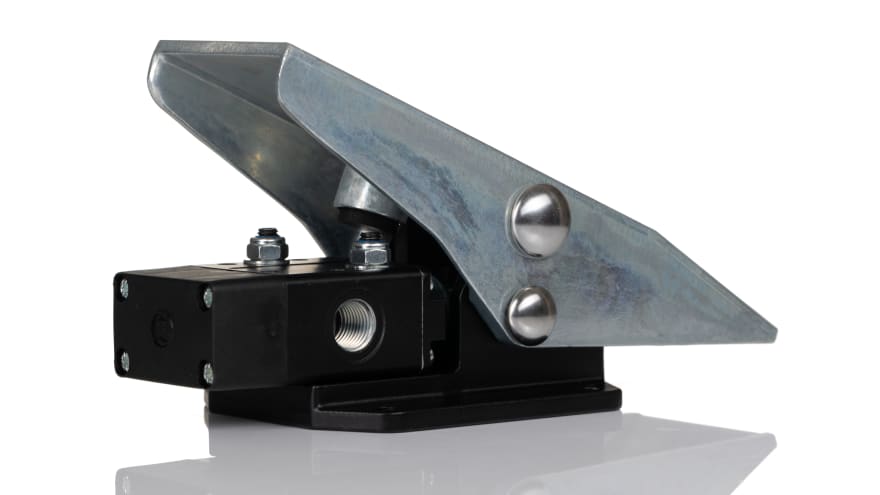

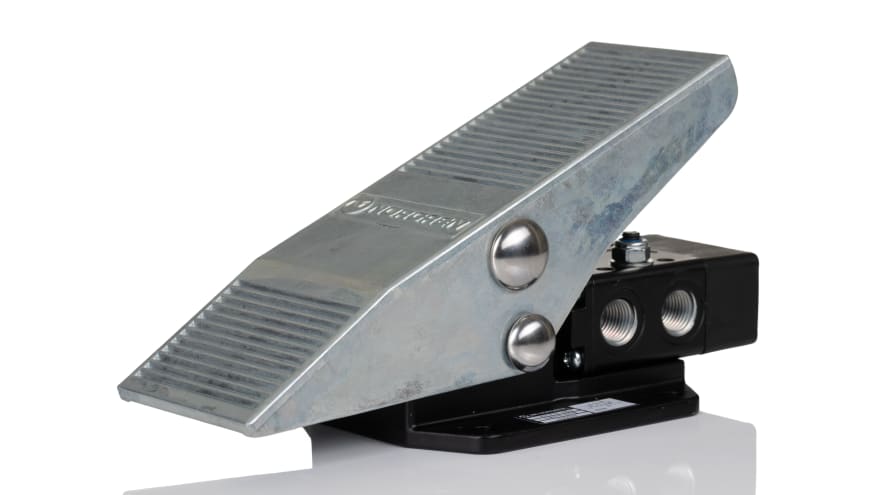

Name: Norgren Pedal 3/2 Pneumatic Manual Control Valve 03 Series, G 1/4, 1/4in, III B
Brand: NORGREN
SKU: 3068302
Availability: InStock

Norgren Pedal 3/2 Pneumatic Manual Control Valve 03 Series, G 1/4, 1/4in, III B

รหัสสินค้า: 3068302

รวมภาษีมูลค่าเพิ่มแล้ว

จัดส่งถึงปลายทางภายใน 4-7 วันทำการ

ขอใบเสนอราคาและส่วนลด

รายละเอียดสินค้า / Product Details

**IMI Norgren Pneumatic Manual Control Valve,Zinc Housing,NBR Seals – 03068302**
Take charge of simple tasks in your industrial equipment with this pneumatic manual control valve from IMI Norgren. It’s a foot-operated 3/2 way device that’s used to manage pneumatic cylinders – simply press it down to actuate your kit. This makes it handy for hands-free tasks like lifting and clamping. The unit’s zinc housing handles corrosion and impact without breaking a sweat, so it’s suitable for use with heavy-duty applications. Regulation G1/4 threaded ports make assembly a breeze as no complex tooling is called for.

**Features & Benefits**
• Operating force of 22N makes it suitable for light-duty applications
• Safe to use in challenging settings, thanks to an operating temperature range between 0°C and +70°C
• Integrated NBR seals prevent leakages and block out contaminants to ensure optimal performance
• Handles pressure ranges between -0.9 and 10 bar for versatility

**Applications**
• Medical equipment
• Assembly lines
• Agricultural machinery

**How do I keep the pneumaticvalve working at its best?**
It’s important to keep the air input dry enough to prevent ice formation at temperatures below +2°C if you want to keep this unit functioning properly. This prevents blockages and damage.

****
Norgren, Parker & Herga

****
Foot switches with a maximum operating pressure of 10 bar.

คุณสมบัติ / Specifications
Control Mechanism: Pedal
Connection Port Thread: G 1/4
Function: 3/2
Thread Size: 1/4in
Thread Standard: G
Manufacturer Series: 03
Control Button/Switch Colour: Black
Maximum Operating Pressure: 10 bar
Body Material: Zinc Alloy
Maximum Flow Rate: 965L/min
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: +70°C
Number of Ports: 3/2
