คุณสมบัติ / Specifications
Control Mechanism: Lever
Connection Port Thread: G 1/4
Function: 3/2
Thread Size: 1/4in
Thread Standard: G
Manufacturer Series: 03
Control Button/Switch Colour: Black
Maximum Operating Pressure: 10 bar
Body Material: Zinc Alloy
Maximum Flow Rate: 965L/min
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: +70°C
Number of Ports: 3/2
-20%
สินค้าในกลุ่มนี้ทั้งหมด
Norgren Double Acting Rodless Actuator 300mm Stroke, 16mm Bore – Model: M/146116/M/300
Original price was: ฿30,528.81.฿24,423.05Current price is: ฿24,423.05. รวมภาษีมูลค่าเพิ่มแล้ว
Norgren Series QM/48 110 V ac Solenoid Valve Coil – Model: QM/48/18J/28
Original price was: ฿2,702.20.฿2,161.76Current price is: ฿2,161.76. รวมภาษีมูลค่าเพิ่มแล้ว

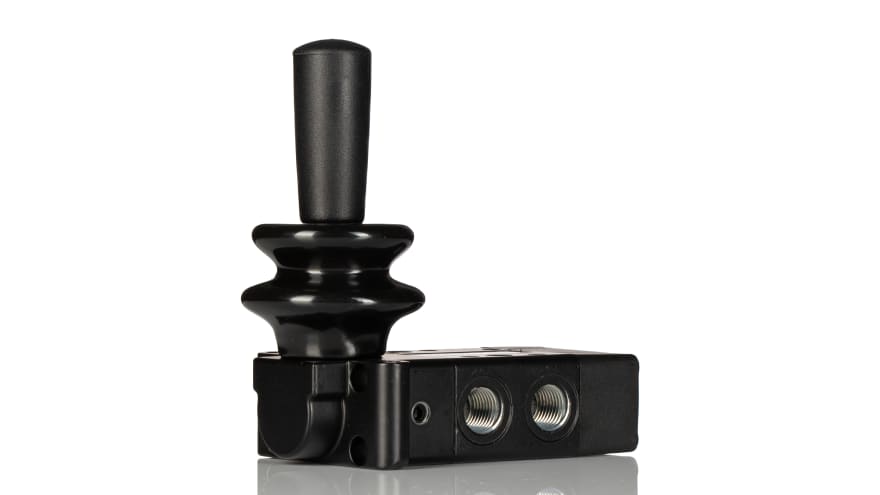

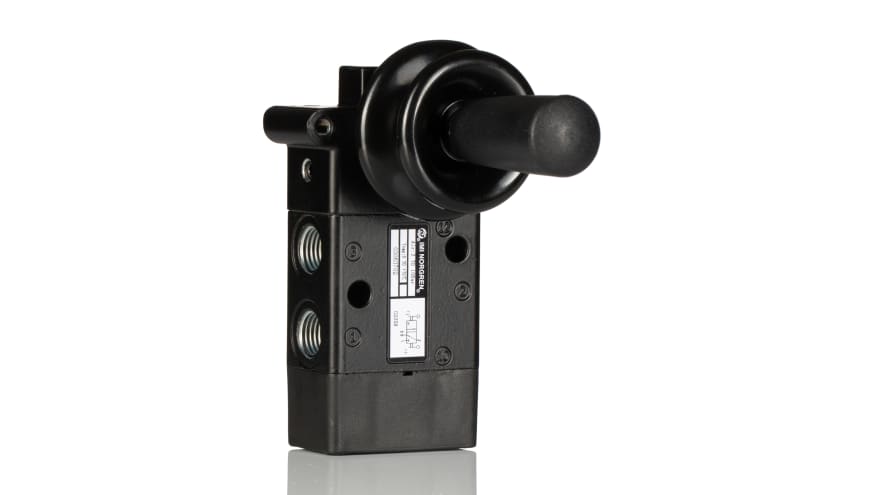

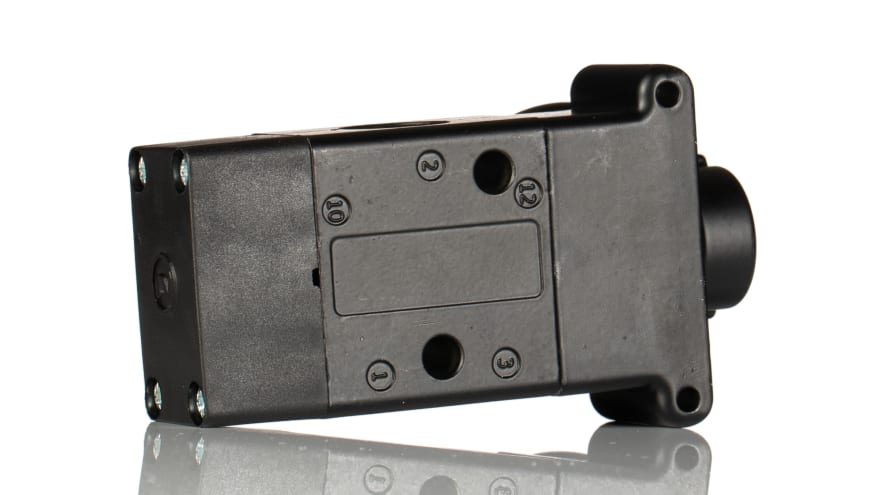

Norgren Lever 3/2 Pneumatic Manual Control Valve 03 Series, G 1/4, 1/4in
รหัสสินค้า: 3063802Original price was: ฿11,408.22.฿9,126.57Current price is: ฿9,126.57. รวมภาษีมูลค่าเพิ่มแล้ว
จัดส่งถึงปลายทางภายใน 4-7 วันทำการ
ขอใบเสนอราคาและส่วนลด
รายละเอียดสินค้า / Product Details
**IMI Norgren Pneumatic Manual Control Valve, Compressed Air Medium, 956L/min Maximum Flow Rate – 03 Series – 03063802**
Looking for an accurate way to regulate airflow in your industrial process? Choose this 3/2-way pneumatic manual control valve from IMI Norgren. It has a lever actuator, meaning you can manually control the direction the air flows in to allow for greater accuracy and smoother equipment functioning. The seal is made from nitrile rubber, which is puncture-resistant to guard against leakage and ensure the continued efficiency of your system. Installation is simple, as the body has holes you can use to screw it into the mounting surface.
**Features & Benefits**
• Broad operating temperature range between 0°C and +70°C for use in demanding environments
• Expected lifespan of 10 years, for reliable long-term performance
• Zinc-alloy body is resistant to impact and corrosion for use in challenging conditions
• Standard G1/4 connection for easy compatibility
**Applications**
• Petroleum industry
• Chemical production
• Metallurgical processes
**What size is this valve?**
The dimensions of this unit are 21 (H) x 80 (L) x 93mm (W), so it’s a compact choice for use in setups with limited space.
**What operating pressures does this valve support?**
For versatility, this pneumatic valve has an operating pressure range between -0.9 and +10 bar.
