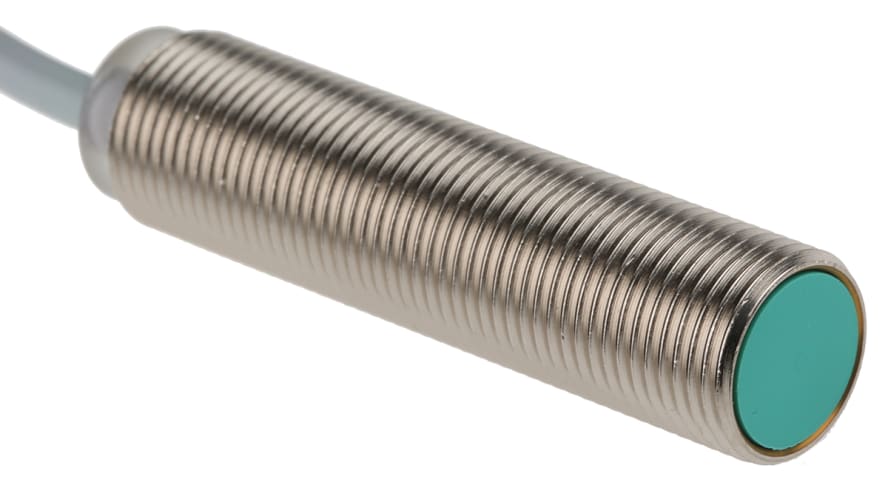

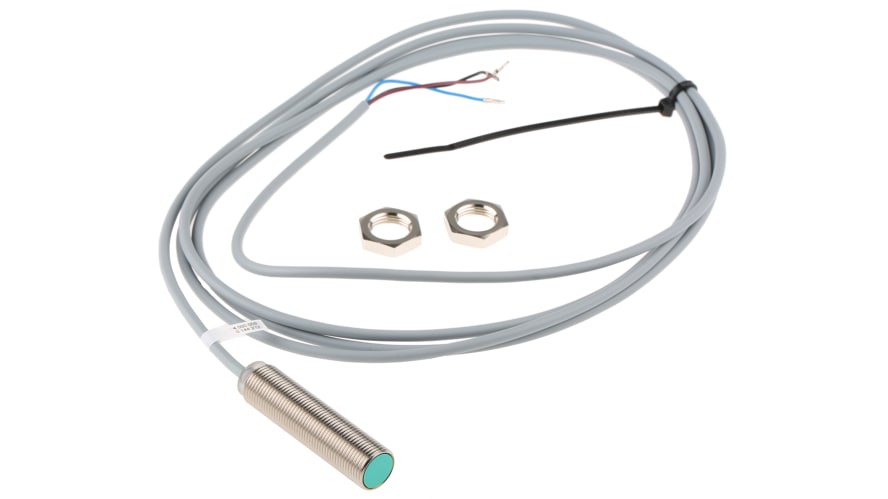

NBB4-12GM50-E0, Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, M12 x 1, 4 mm Detection, NPN Output, 5 → 36 V dc, IP68 – Model: NBB

คุณสมบัติ / Specifications Sensor Technology: Inductive Thread Size: M12 x 1 Body Style: Barrel Output Type: NPN-NO Detection Range: 4 mm Terminal Type: Cable Supply Voltage: 10 → 30 V dc IP Rating: IP67 Length: 50mm Maximum DC Voltage: 36V Mounting Type: Flush Mount Switching Current: 200 mA Housing Material: Nickel Plated Brass Maximum Switching Frequency: 2550Hz Maximum Operating Temperature: +85°C Short Circuit Overload Protection: Yes Reverse Polarity Protection: Yes Minimum Operating Temperature: -40°C
