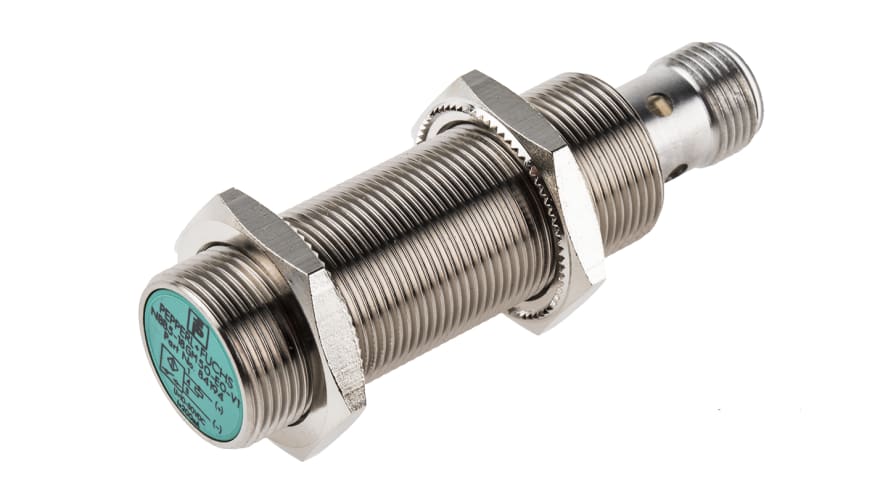

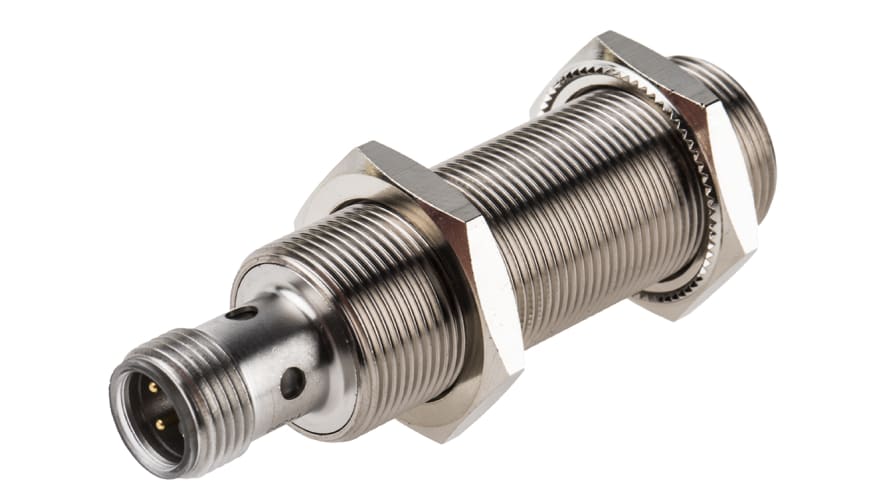

NBB5-18GM50-E0-V1, Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, M18 x 1, 5 mm Detection, NPN Output, 5 → 36 V dc, IP68 – Model:

คุณสมบัติ / Specifications Sensor Technology: Inductive Thread Size: M18 x 1 Body Style: Barrel Output Type: NPN-NO Detection Range: 5 mm Terminal Type: M12 - 4 Pin Supply Voltage: 10 → 30 V dc IP Rating: IP67 Length: 65mm Maximum DC Voltage: 36V Mounting Type: Flush Mount Switching Current: 200 mA Housing Material: Nickel Plated Brass Maximum Operating Temperature: +85°C Maximum Switching Frequency: 1950Hz Short Circuit Overload Protection: Yes Minimum Operating Temperature: -40°C Reverse Polarity Protection: Yes
