คุณสมบัติ / Specifications
Connector A: G 1/4 Male
Connector B: G 1/2 Female
Pneumatic Fitting Type: Straight Threaded Adaptor
Connection Style: Threaded
Threaded Connection: G 1/4 Male
Manufacturer Series: 16
Inlet Port: G 1/4 Male
Number of Inlet Ports: 1
Outlet Port: G 1/2 Female
Number of Outlet Ports: 1
Thread Material: Nickel Plated Brass
Angle: Straight
Maximum Operating Temperature: +70°C
Maximum Operating Pressure: 18 Bar
Minimum Operating Temperature: -18°C
Body Material: Nickel Plated Brass
Finish: Nickel Plated
Mounting Type: Inline
-20%
สินค้าในกลุ่มนี้ทั้งหมด
Norgren Pneumatic Cylinder & Actuator Switch, Excelon Plus – Model: 840016-51KIT
Original price was: ฿1,531.06.฿1,224.85Current price is: ฿1,224.85. รวมภาษีมูลค่าเพิ่มแล้ว
Norgren Double Acting Rodless Actuator 600mm Stroke, 16mm Bore – Model: M/146016/M/600
Original price was: ฿29,364.49.฿23,491.59Current price is: ฿23,491.59. รวมภาษีมูลค่าเพิ่มแล้ว

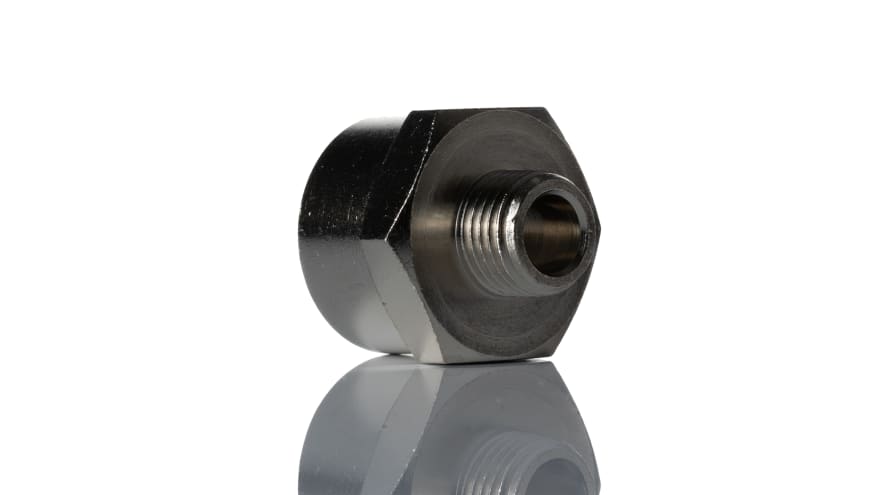

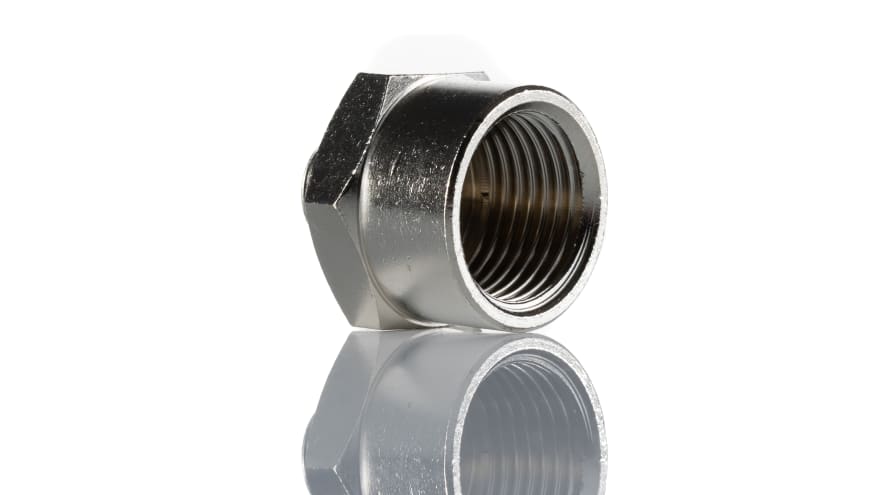

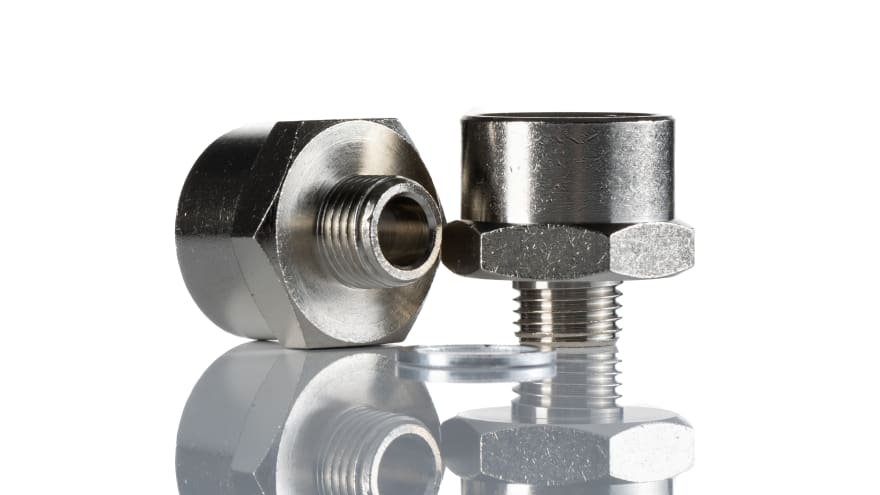

Norgren 16 Series Straight Threaded Adaptor, G 1/4 Male to G 1/2 Female, Threaded Connection Style – Model: 160232848
รหัสสินค้า: 220-3347Original price was: ฿1,850.31.฿1,480.25Current price is: ฿1,480.25. รวมภาษีมูลค่าเพิ่มแล้ว
จัดส่งถึงปลายทางภายใน 10-14 วันทำการ
มีสินค้าอยู่ 38
ขอใบเสนอราคาและส่วนลด
รายละเอียดสินค้า / Product Details
**IMI Norgren Pneumatic Fitting, Expanding Connector Type, Nickel-Plated Brass – 16 Series – 160232848**
Joining different pipe sizes in your system is a cinch with this pneumatic fitting from IMI Norgren. It’s an expanding type of connector with a universal G1/4 male port on one side and a standard G1/2 female connector on the other. These are threaded, so you can be sure of quick fitting and a secure attachment that stands up to vibration. Thanks to its durable nickel-plated brass construction and heavy-duty aluminium seals, this unit takes the strain in high-pressure environments up to 18 bar.
**Features & Benefits**
• Suitable for vacuum and fluid applications, making it versatile to use
• All ISO G male threads come with flat soft alloy washer, so you’re good to go
• Length of 26.5mm makes this component compact enough to fit where space is tight
• No special tools needed – a standard size 26 spanner will tighten it
**Applications**
• Automotive industry
• Food and beverage production
• Process control and automation
• Packaging equipment
**What temperatures can this pneumatic fitting safely handle?**
This pneumatic fitting has a wide operating temperature range between -20°C and +70°C, so it can handle harsh conditions.
