คุณสมบัติ / Specifications
Manufacturer Series: M/31000
Nominal Diameter: 152.4mm
Number of Convolutions: 2
Stroke: 115mm
Installation Height Minimum: 75mm
Installation Height Maximum: 130mm
Port Connection: G 1/2
Maximum Operating Pressure: 8 bar
Cushioning Type: Air
Weight: 3kg
-20%
สินค้าในกลุ่มนี้ทั้งหมด
IMI Norgren Pneutic C Series Threaded Flow Controller, 10mm Tube Inlet Port x 10mm Tube Outlet Port
Original price was: ฿790.00.฿632.00Current price is: ฿632.00. รวมภาษีมูลค่าเพิ่มแล้ว
IMI Norgren Reed Reed Switch, IP66, 10 → 240V ac/dc, NO Operation, QM/34, with LED indicator – Model: QM/34/5
Original price was: ฿10,068.96.฿8,055.17Current price is: ฿8,055.17. รวมภาษีมูลค่าเพิ่มแล้ว
IMI Norgren Compact Air Bellows M/31081, 2 convolution , 115mm Stroke – Model: M/31081
รหัสสินค้า: 212-9256Original price was: ฿28,534.99.฿22,827.99Current price is: ฿22,827.99. รวมภาษีมูลค่าเพิ่มแล้ว
จัดส่งถึงปลายทางภายใน 10-14 วันทำการ
มีสินค้าอยู่ 3
ขอใบเสนอราคาและส่วนลด
รายละเอียดสินค้า / Product Details

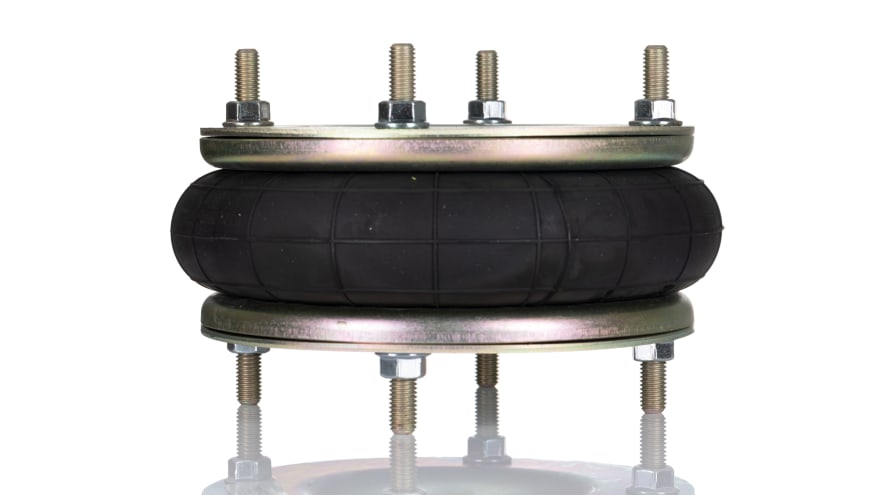

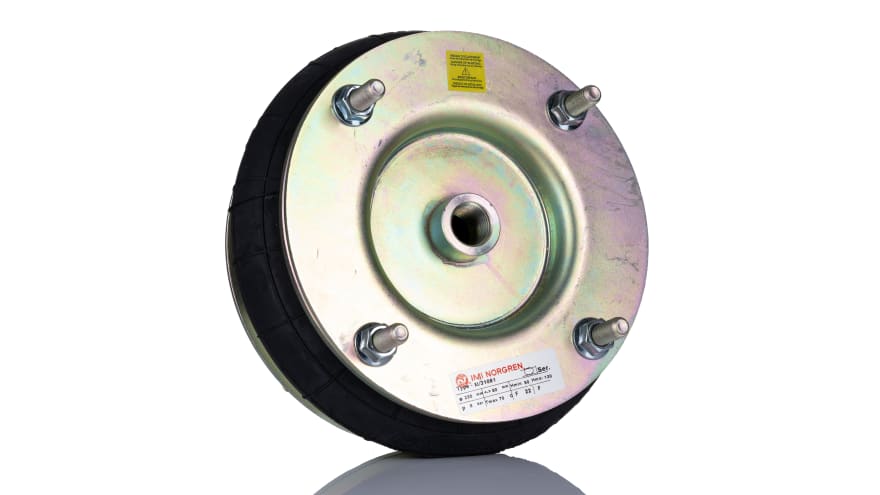

**IMI Norgren Compact Air Bellows, 152.4mm Nominal Diameter, 50 to 130mm Installation Height – M/31000 Series – M/31081**
Need a solution for raising and lowering loads in your pneumatic system? Try these compact air bellows from IMI Norgren. With a 75mm stroke length, they’re ideal for short-stroke applications. The tough SBR rubber-compound body is strong and flexible, delivering reliable long-term performance. Solid end plates are a doddle to fit with standard screw and nut fittings. Since the product has an installation height between 50 and 130mm, you’ll have no trouble slotting it into your existing setup. As these air bellows don’t need lubricating, there’s little maintenance to worry about.
**Features & Benefits**
• Broad operating temperature range between -40°C and +70°C to handle harsh conditions
• Chrome-plated steel end plates are tough and corrosion-resistant for a long service life
• Standard G1/2 port has wide compatibility with pneumatic pipes and connectors
• Absorbs and isolates vibration, reducing wear and tear on your equipment
**Applications**
• Scissor lifts
• Machine presses and rollers
• Food processing equipment
**What’s the operating pressure of these compact air bellows?**
They operate safely at pressures between 0 and 8 bar, making them suitable for use with low and medium-power pneumatic systems.
