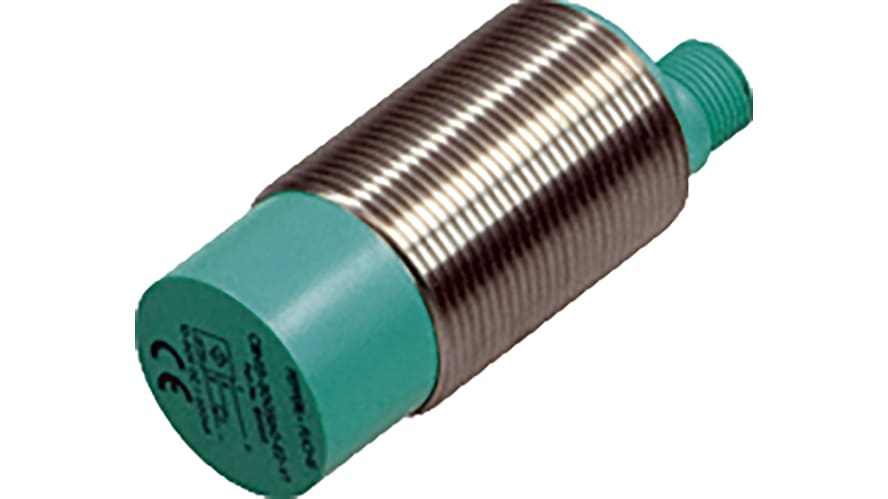

CCN15-30GS60-A2-V1, Pepperl + Fuchs Capacitive Barrel-Style Proximity Sensor, M30 x 1.5, 15 mm Detection, PNP Output, 10 → 60 V dc, – Model:

คุณสมบัติ / Specifications Sensor Technology: Capacitive Thread Size: M30 x 1.5 Body Style: Barrel Output Type: PNP Detection Range: 15 mm Terminal Type: 4-Pin M12 Connector Supply Voltage: 10 → 60 V dc IP Rating: IP67 Length: 72.5mm Switching Frequency: 10 Hz Maximum DC Voltage: 60V Switching Current: 200 mA Maximum Operating Temperature: +70°C Housing Material: Stainless Steel Minimum Operating Temperature: -25°C Short Circuit Overload Protection: Yes Reverse Polarity Protection: Yes Standards Met: cCSAus Listed, CE Certified, cULus Listed, EN 60947-5-2, EN 60947-5-2/A1, IEC 60947-5-2, IEC 60947-5-2 AMD 1
