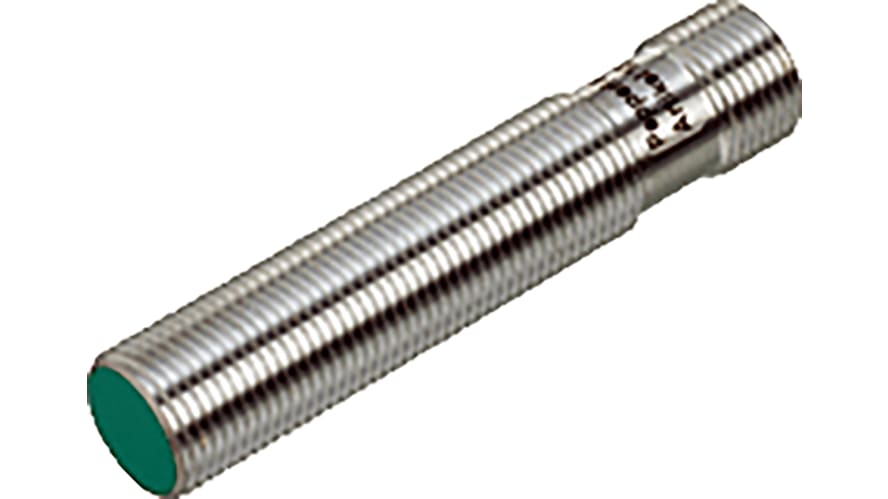

IA6-12GM50-IU-V1, Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, M12 x 1, 6 mm Detection, Analogue Output, 15 → 30 V dc, – Model:

คุณสมบัติ / Specifications Sensor Technology: Inductive Thread Size: M12 x 1 Body Style: Barrel Output Type: Analogue Detection Range: 6 mm Terminal Type: 4-Pin M12 Connector Supply Voltage: 15 → 30 V dc IP Rating: IP67 Length: 60mm Mounting Type: Flush Housing Material: PBT Maximum Switching Frequency: 1kHz Maximum Operating Temperature: +70°C Standards Met: CCC Certified, cCSAus Listed, CE Certified, cULus Listed, EN 60947-5-2, EN 60947-5-7, IEC 60947-5-2, IEC 60947-5-7 Short Circuit Overload Protection: Yes Minimum Operating Temperature: -25°C Reverse Polarity Protection: Yes
