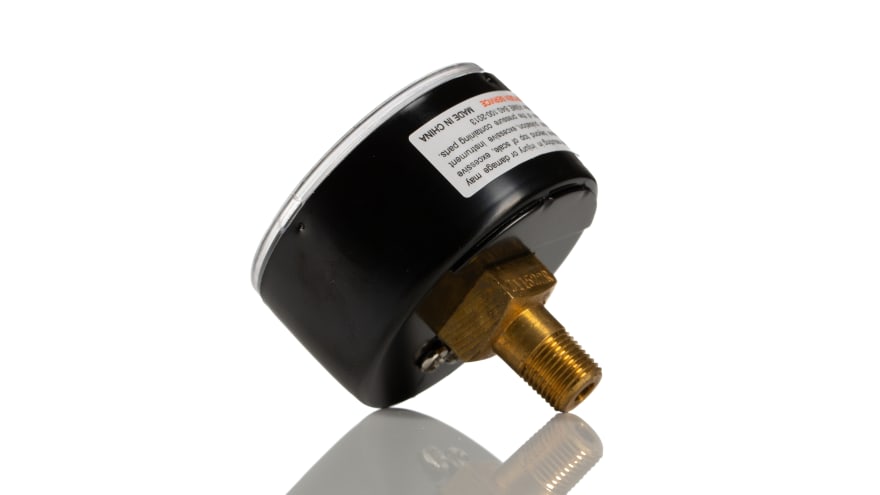

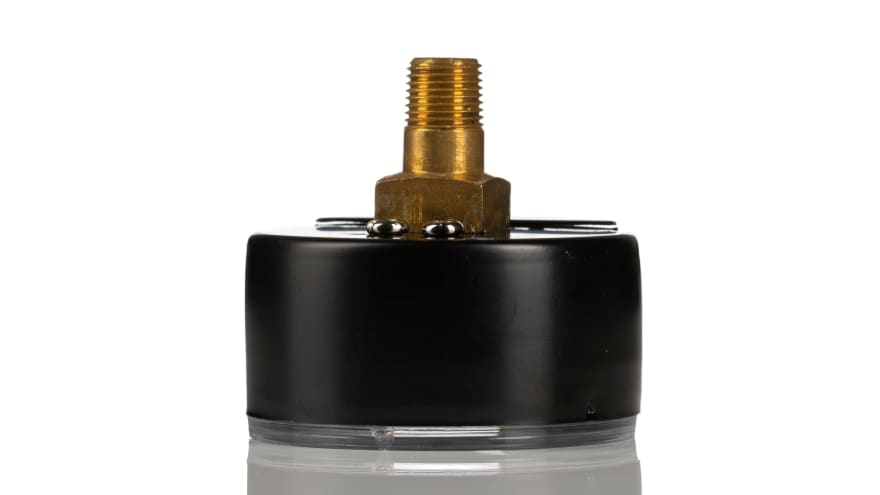

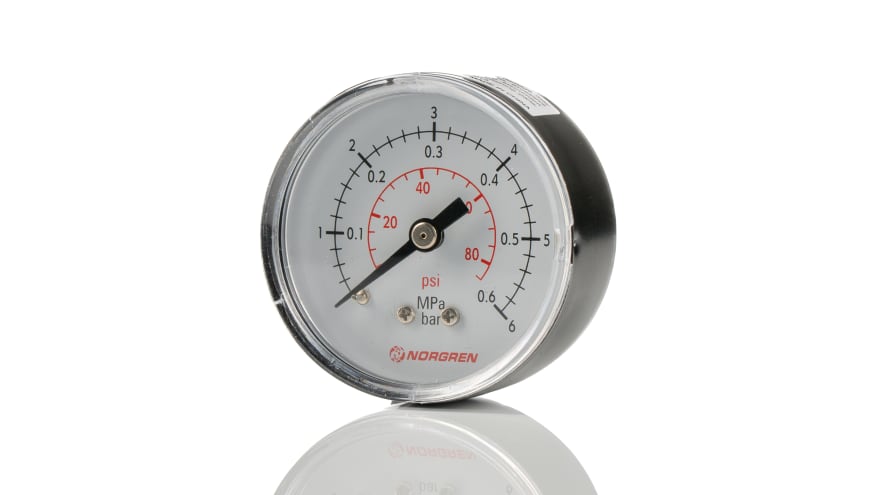

Name: IMI Norgren Analogue Pressure Gauge 6bar Back Entry, 18-013-012, 0bar min.
Brand: NORGREN
SKU: 18-013-012
Availability: InStock

IMI Norgren Analogue Pressure Gauge 6bar Back Entry, 18-013-012, 0bar min.

รหัสสินค้า: 18-013-012

รวมภาษีมูลค่าเพิ่มแล้ว

จัดส่งถึงปลายทางภายใน 4-7 วันทำการ

มีสินค้าอยู่ 12

ขอใบเสนอราคาและส่วนลด

รายละเอียดสินค้า / Product Details

**IMI Norgren Analogue Positive Pressure Gauge, Centre-Back Connection, 50mm Diameter Dial Face – 18-013-012**
Monitor your compressed air system or pneumatic network with this pressure gauge from IMI Norgren. The analogue unit uses a Bourdon tube to display pressures between 0 and 6 bar, so it’s practical for use in low-pressure applications. A hardwearing PA66 body resists damage from abrasion and impact, while the PC lens is durable but transparent, so you can read its 50mm dial face clearly. Thanks to a robust brass connector on the centre back, this is a safe choice for use with compressed air or gasses, oils and any liquids that don’t corrode copper alloys.

**Features & Benefits**
• Dual scale shows readings in psi and bar for versatility
• Accuracy of 2.5% of full scale means you get precise readings
• Tapered R1/8 NPT thread on the connector creates an airtight seal with no need for thread sealant

**Applications**
• Compressors
• Medical equipment
• HVAC systems

**What temperatures can I use this pressure gauge at?**
This pressure gauge operates safely at temperatures between -40°C and +65°C and supports media across this same range. Make sure your air supply is dry to avoid ice formation below +2°C.

****
Gauges

****
Suitable for all gaseous and liquid media that will not obstruct the pressure system or attack copper alloy parts.

คุณสมบัติ / Specifications
Maximum Pressure Measurement: 6bar
Mounting Type: Back Entry
Minimum Pressure Measurement: 0bar
Display Type: Analogue
Gauge Outside Diameter: 50mm
Best Accuracy: ± 2.5%
Case Material: ABS, Stainless Steel, Steel
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +65°C
