คุณสมบัติ / Specifications
Connector A: R 1/2 Male
Connector B: G 1/8 Female
Pneumatic Fitting Type: Straight Threaded Adaptor
Connection Style: Threaded
Threaded Connection: G 1/8
Manufacturer Series: 15
Inlet Port: R 1/2 Male
Number of Inlet Ports: 1
Outlet Port: G 1/8 Female
Number of Outlet Ports: 1
Thread Material: Nickel Plated Brass
Maximum Operating Pressure: 18 Bar
Angle: Straight
Finish: Nickel Plated
Maximum Operating Temperature: +70°C
Minimum Operating Temperature: -18°C
Body Material: Nickel Plated Brass
Mounting Type: Inline
สินค้าในกลุ่มนี้ทั้งหมด

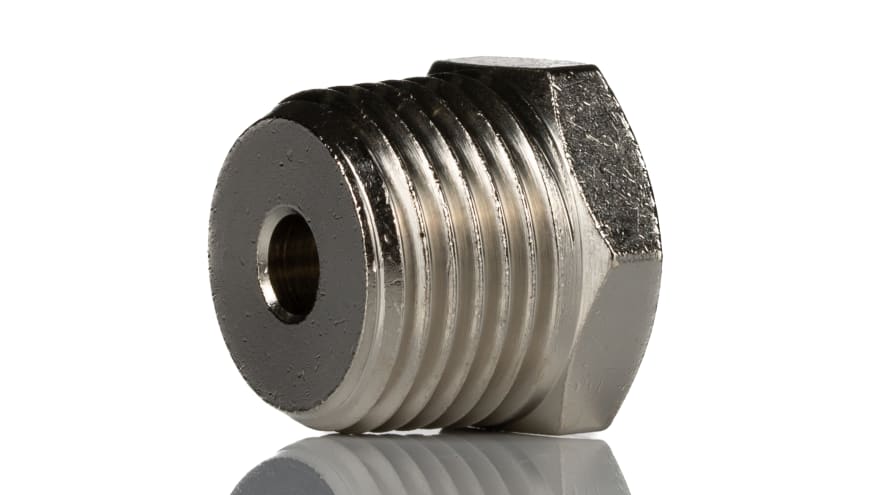

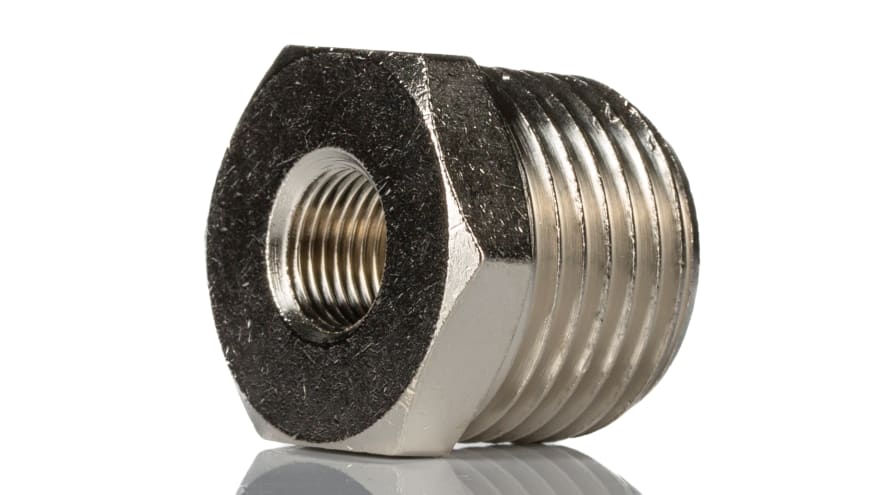

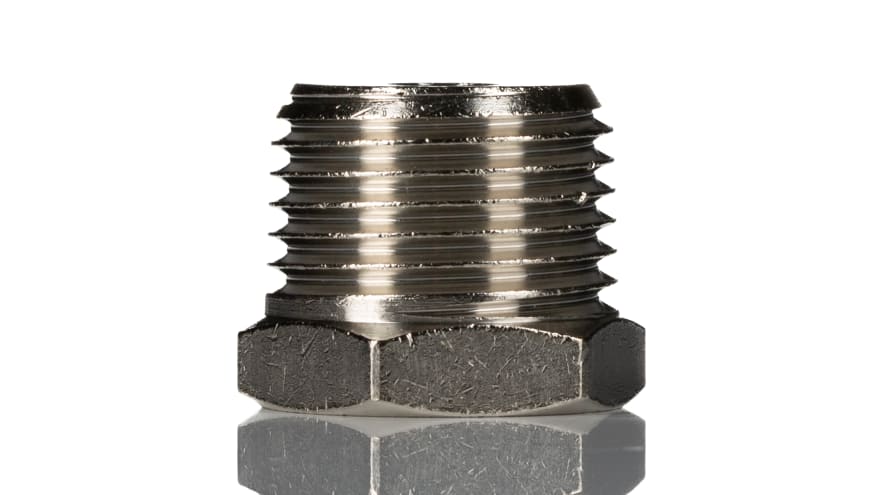

Norgren 15 Series Straight Threaded Adaptor, R 1/2 Male to G 1/8 Female, Threaded Connection Style
รหัสสินค้า: 150234818฿1,190.00 Original price was: ฿1,190.00.฿952.00Current price is: ฿952.00. รวมภาษีมูลค่าเพิ่มแล้ว
ขอใบเสนอราคาและส่วนลด
รายละเอียดสินค้า / Product Details
**IMI Norgren Pneumatic Fitting, -0.9 to 18 Bar Pressure Range, Aluminium Washers – 15 Series – 150234818**
For sturdy joins in pressurised lines, choose this reducing pneumatic fitting from IMI Norgren. It has different sized ends, one G1/8, the other R1/2, that make it practical for connecting tubing or hosing of unequal sizes. Both connectors are threaded, so a reliably tight fit is just a twist of the wrist away. You’ll find this is a suitable choice for tasks involving compressed air, fluid and vacuums due to its broad operating pressure range from -0.9 to 18 bar. The robust unit resists corrosion thanks to its non-reactive nickel-plated brass construction, so you can count on it to handle the pressure over a long service life.
• Industry-standard ISO G and ISO R thread types help you connect up any standardised components
• Operating temperature range from -20°C to +70°C, so it’s a practical choice for harsh environments
• Accepts BSP and hose-type tubing for application versatility
**Applications**
• Industrial air lines
• Automotive construction
• Robotics systems
The IMI Norgren reducing connector is made from nickel plated brass. It is corrosion resistant. It has operating temperature range from -18 to +70°C. Its operating pressure is from -0.9 to +18bar.
**Does this product come with washers?**
Compact design
Medium is compressed air and fluid compatible with sealing materials
Suitable for vacuum applications
Yes, its standardised ISO G-threaded washers give you a secure connection. Their hardwearing aluminium construction helps them withstand high temperatures and pressures so they’ll be with you for the long haul.
