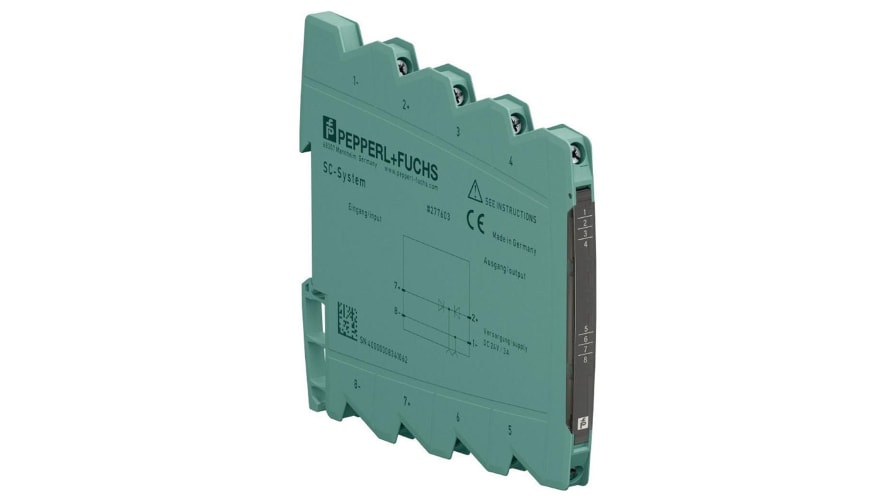

S1SD-1Di-1R, Pepperl + Fuchs S1SD Series Signal Conditioner, Digital Input, Relay Output, 16.8 → 31.2V dc Supply – Model: S1SD-1Di-1R

คุณสมบัติ / Specifications Module Type: Switching Amplifier Input Signal Type: Digital Output Signal Type: Relay Input Range: (S0 Sensor) 0.15 → 2 mA, (Mechanical Contact) 1.2 → 2.1 mA, (NAMUR Sensor ) 1.2 → 2.1 mA, (SN Sensor) 1.2 → 2.1 mA, (AC Source) 10 → 15 V, (NPN Sensor) 3 → 5 V, (2-Wire DC Sensor) 4 → 6 V, (AC Source) 40 → 60 V, (Mechanical Contact) 8 → 10 V, (PNP Sensor) 8 → 10 V, (AC Source) 80 → 115V Output Range: 2 mA, 24V dc Supply Voltage: 16.8 → 31.2V dc Mounting Type: DIN Rail Mount Operating Temperature Range: -25 → +70°C Series: S1SD Maximum Operating Temperature: +70°C Minimum Operating Temperature: -25°C Termination: Screw
