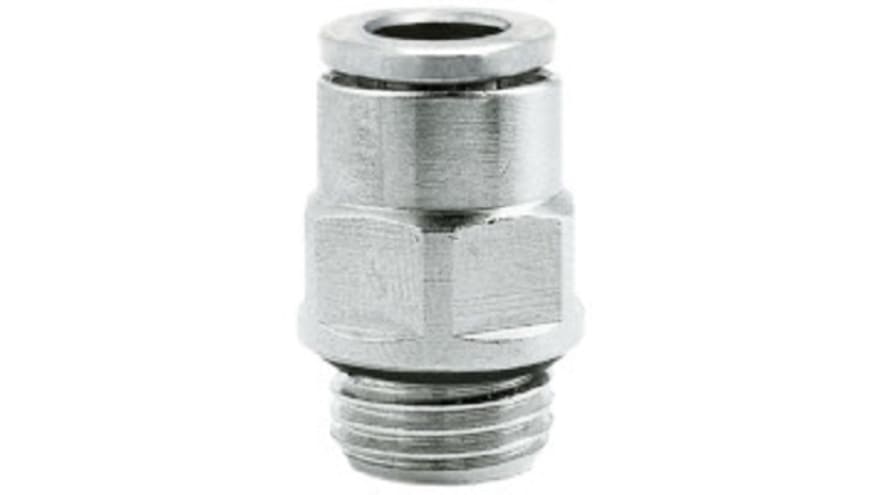

Norgren PNEUFIT 10 Series Straight Threaded Adaptor, G 1/2 Male to Push In 14 mm, Threaded-to-Tube Connection Style

Name: Norgren PNEUFIT 10 Series Straight Threaded Adaptor, G 1/2 Male to Push In 14 mm, Threaded-to-Tube Connection Style
Brand: NORGREN
SKU: 102251448
Availability: InStock

รหัสสินค้า: 102251448

Original price was: ฿711.00.Current price is: ฿569.00. รวมภาษีมูลค่าเพิ่มแล้ว

จัดส่งถึงปลายทางภายใน 4-7 วันทำการ

มีสินค้าอยู่ 55

ขอใบเสนอราคาและส่วนลด

รายละเอียดสินค้า / Product Details
The Norgren pneufit 10 series push in fittings has nickel plated brass body. The tubing types in the fittings are PA 11 or 12, PUR and other plasticised or unplasticised tubing which conforms to the tolerances specified in BS 5409, Part 1, 1976, light and normal duty, DIN 73378, DIN 74234, NFE 49-100.
Port size varies from Ø 4 mm to Ø 16 mm O-D tube, ISO G, ISO R, ISO Rc and NPT threads
Very compact units
Easy tube insertion for rapid assembly of pneumatic circuits
Positive tube anchorage
All BSP taper threads pre coated with non PTFE based sealant
Straight adaptors feature internal hexagon for allen key
O rings of the fittings is silicon free

Compare

Add to wishlist

รหัสสินค้า: 102251448 หมวดหมู่: Hydraulics and Pneumatics / ไฮดรอลิกส์และระบบลม

คำอธิบาย
Documents

คำอธิบาย

คุณสมบัติ / Specifications
Connector A: G 1/2 Male
Connector B: Push In 14 mm
Pneumatic Fitting Type: Straight Threaded Adaptor
Connection Style: Threaded-to-Tube
Threaded Connection: G 1/2 Male
Manufacturer Series: PNEUFIT 10
Inlet Port: G 1/2 Male
Number of Inlet Ports: 1
Outlet Port: Push In 14 mm
Number of Outlet Ports: 1
Maximum Operating Pressure: 18 bar
